Truck Bed Rewire

Project 2.0

Custom Truck Bed Rewire & Electrical Upgrade

480-269-7178 Get a Quote for Your Build

Black putty-covered cable on a ruler-marked table, with yellow arrows pointing to ends and caption text above.

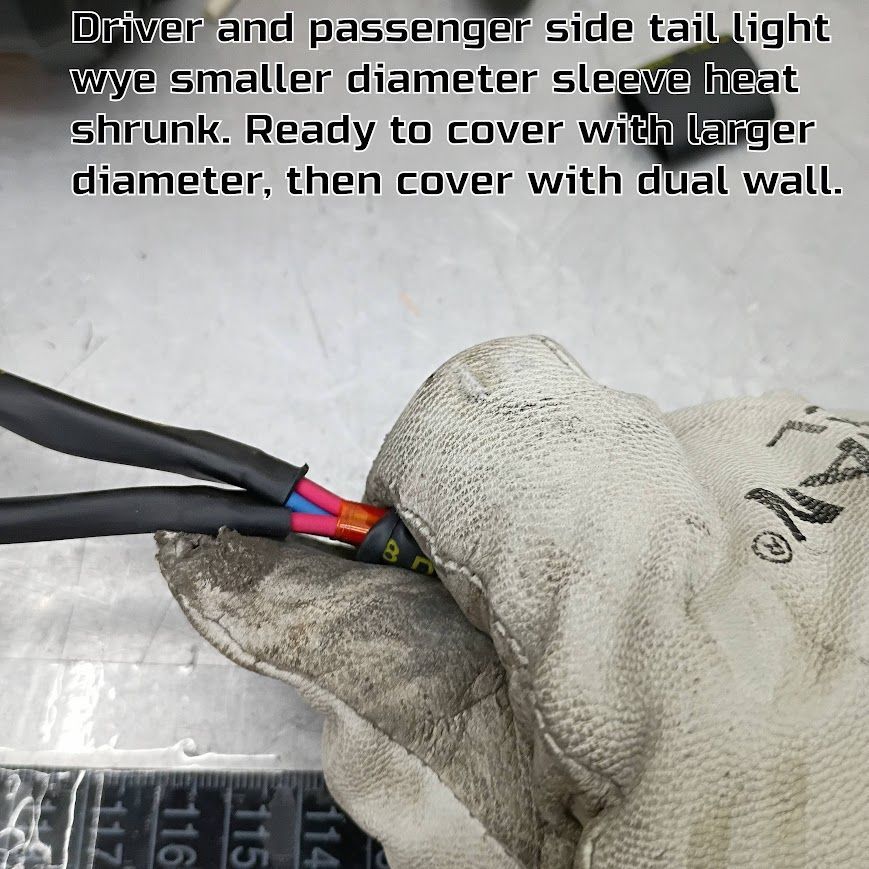

Gloved hands shrink-wrap exposed wire connectors on a cable harness with black, red, and blue wires.

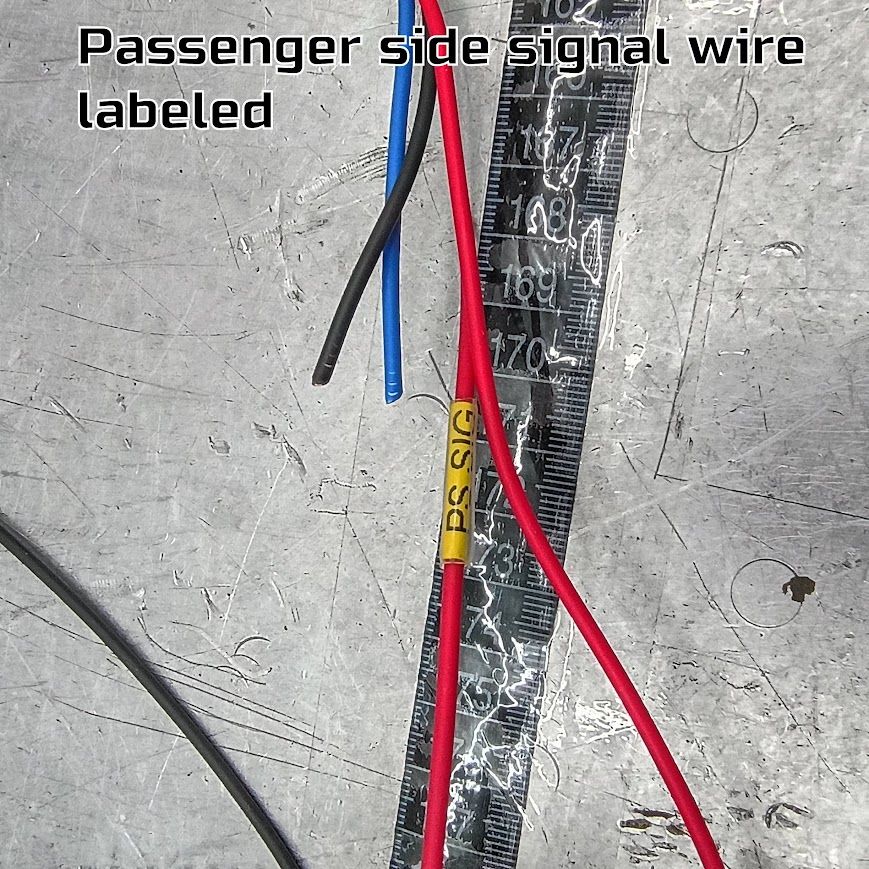

Passenger side signal wire labeled, with red, black, and blue wires on a gray surface

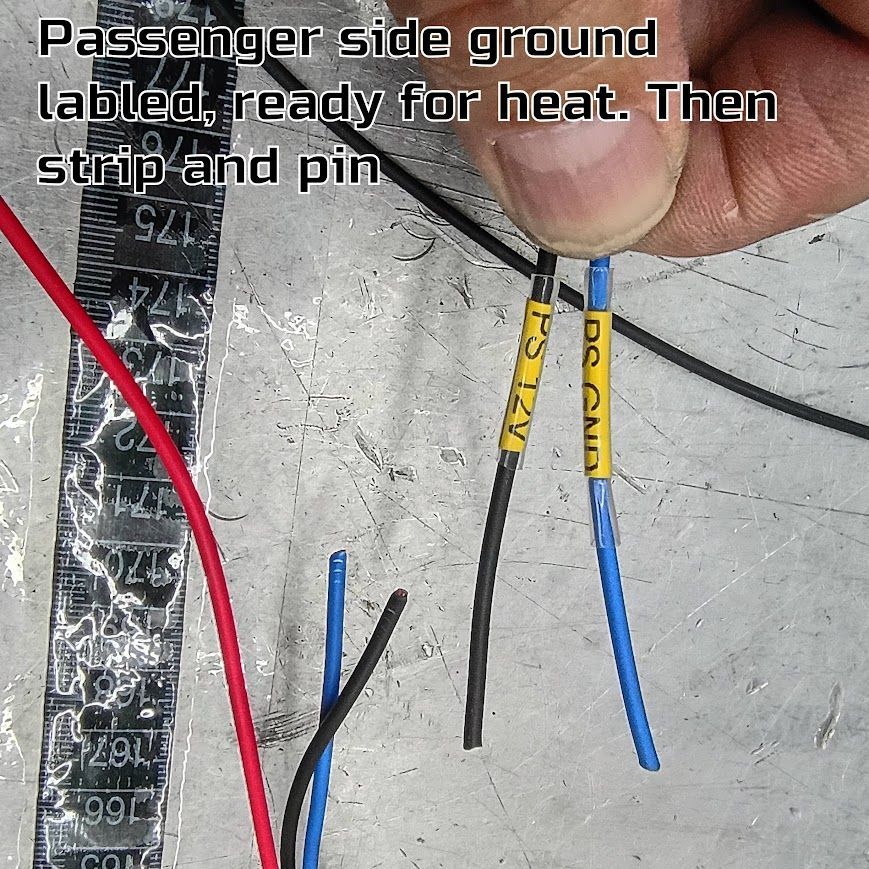

Hand holding black, blue, and red wires with labels over a scratched metal surface.

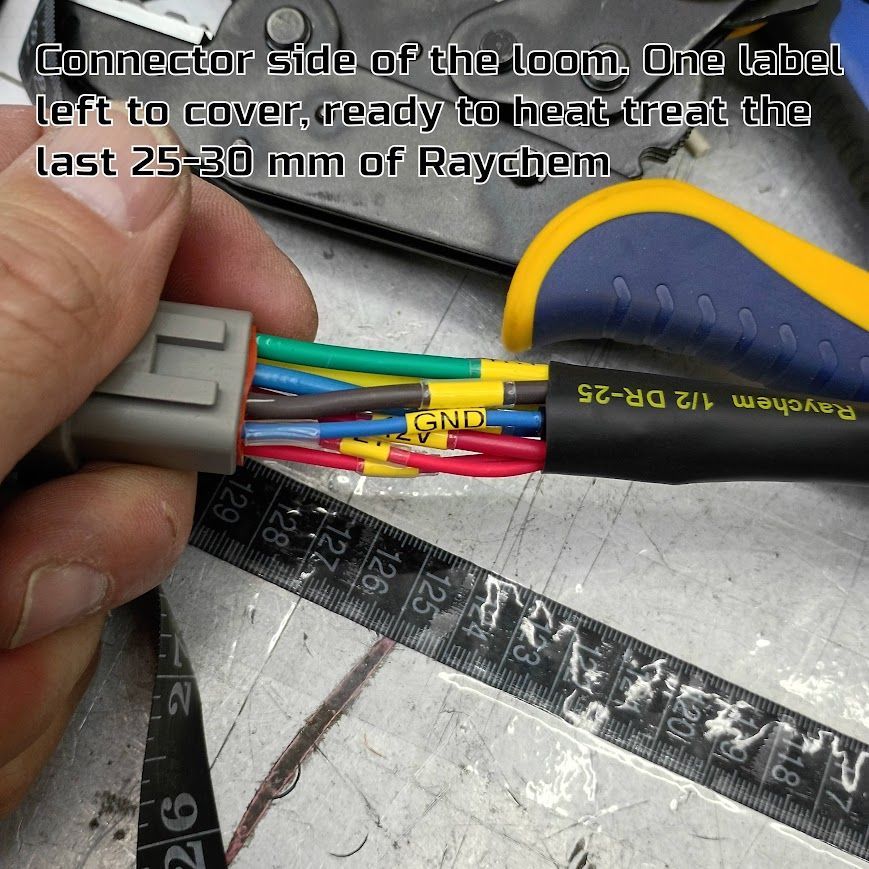

Hand holding a gray connector with multicolored wires and yellow heat-shrink tubing on a workbench

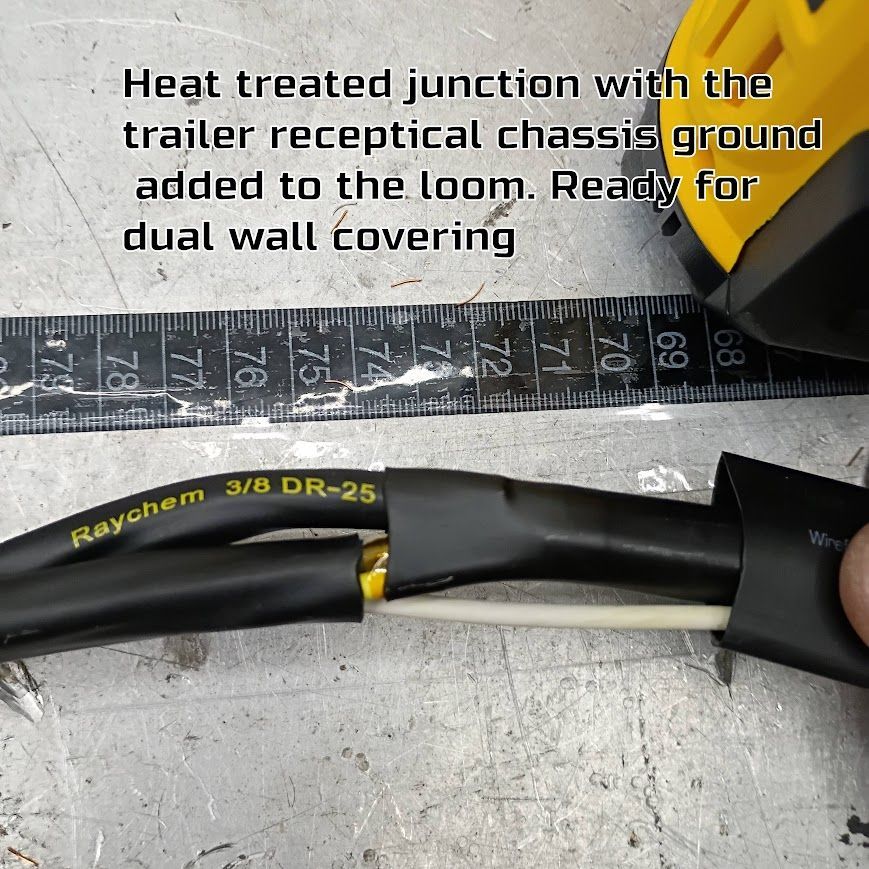

Heat-shrunk wiring junction with trailer receptacle ground wire added, ready for dual-wall covering

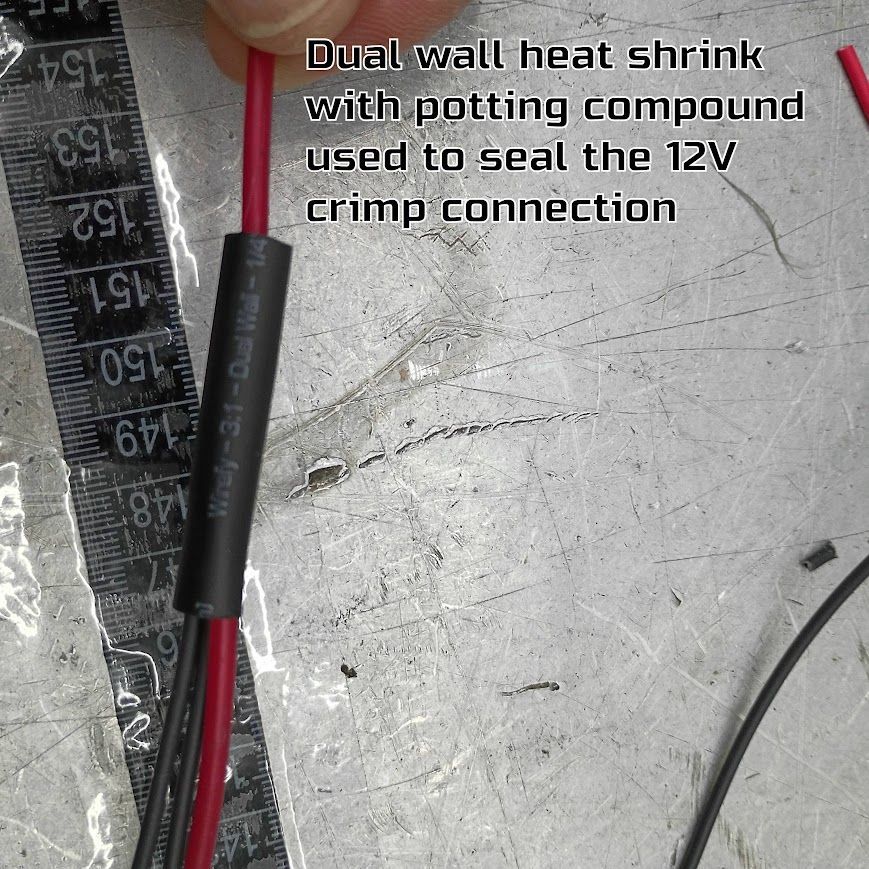

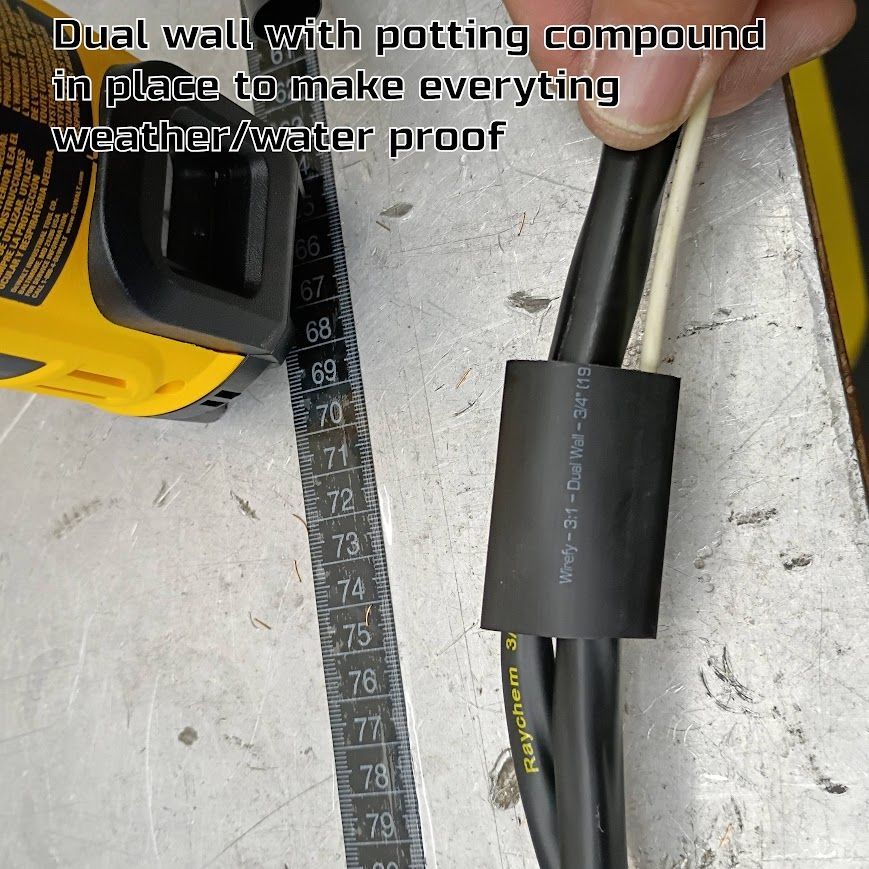

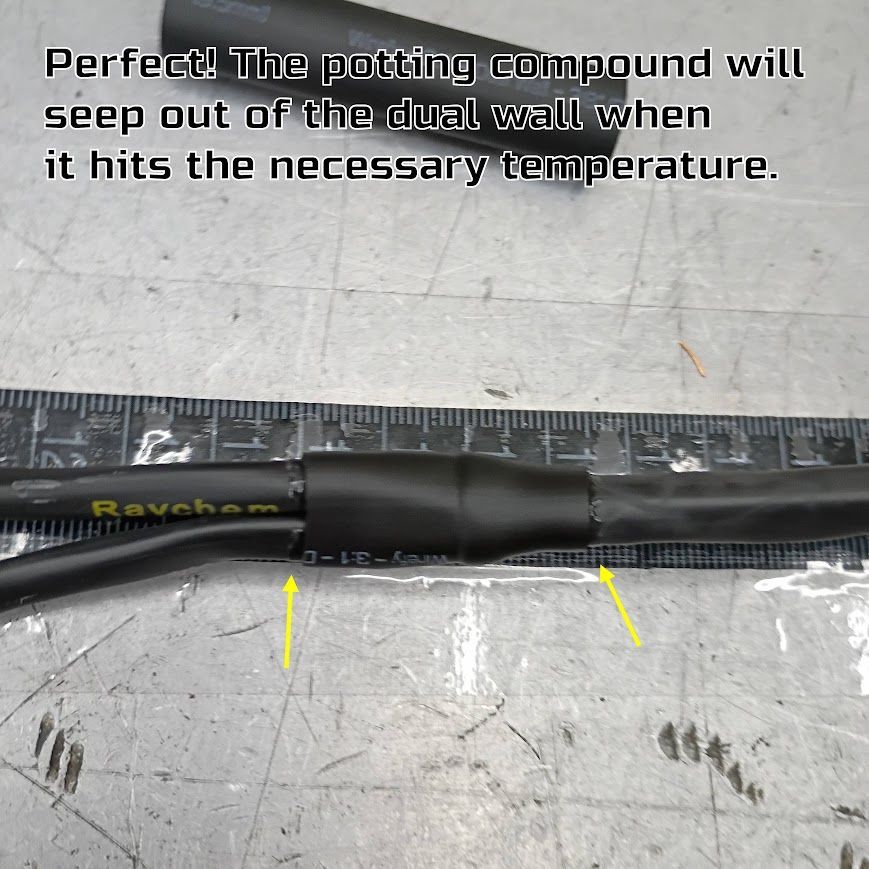

Black dual-wall heat-shrink tubing with potting compound on a cable, shown beside a measuring tape.

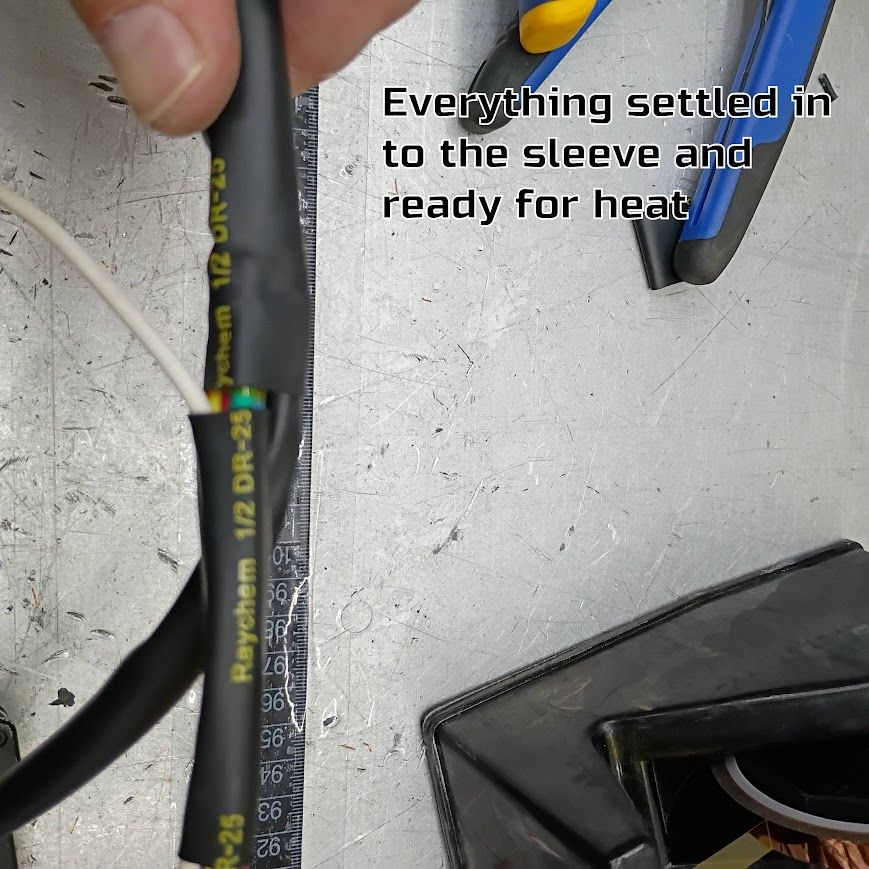

Electrical cable being heat-shrunk, with text noting everything is sealed in the sleeve and ready for heat.

Black and red wires in a loomed cable harness, taped and sleeved on a metal workbench.

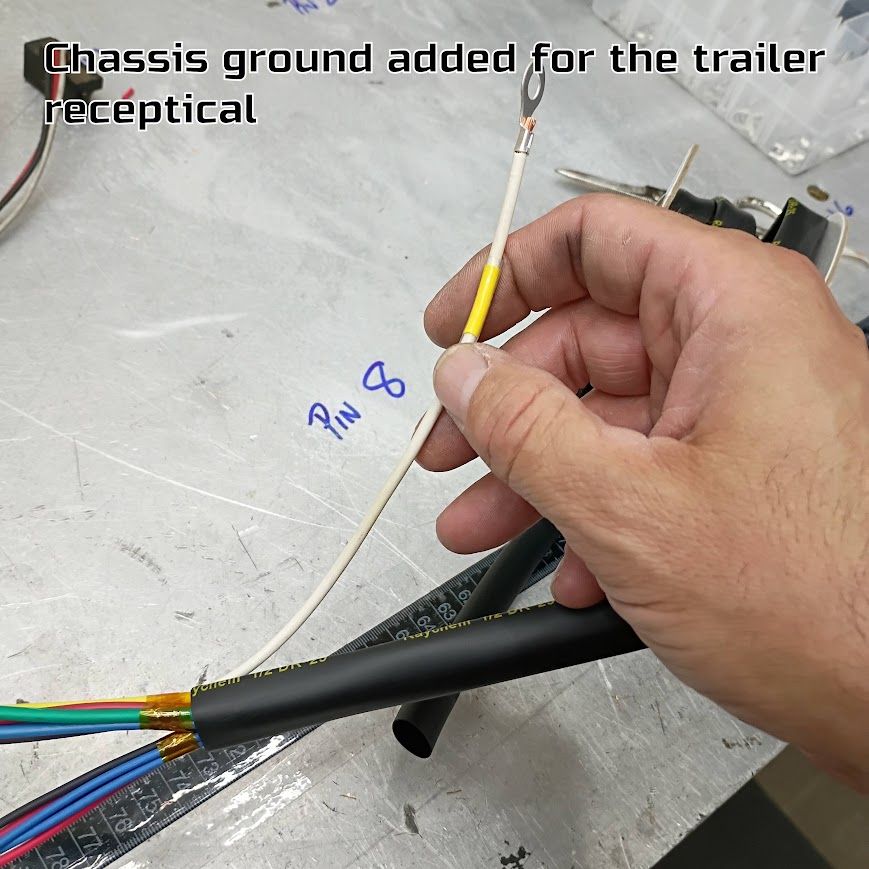

Hand holding a yellow wire near a cable bundle on a workbench, with text noting chassis ground for trailer receptacle

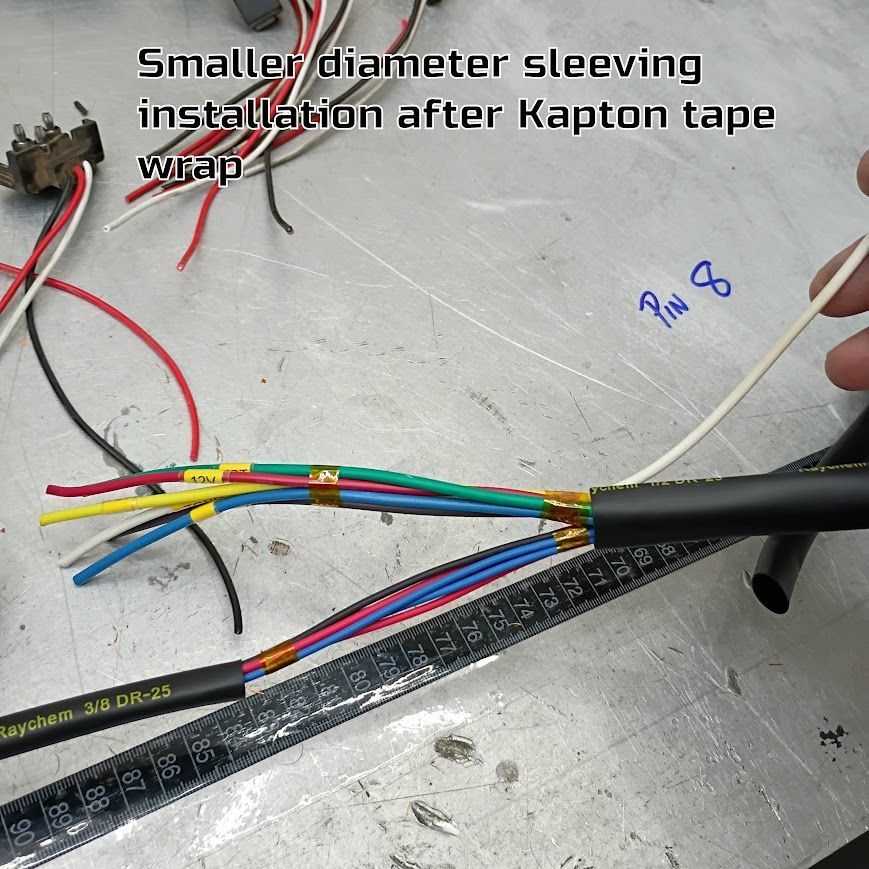

Multicolored wires being sleeved on a workbench, with handwritten note “Smaller diameter sleeving installation after Kapton tape wrap.”

Hands holding multicolored wires with black heat-shrink tubing on a metal workbench.

Loose multicolored wires inside a metal electrical box with a black cable running across it

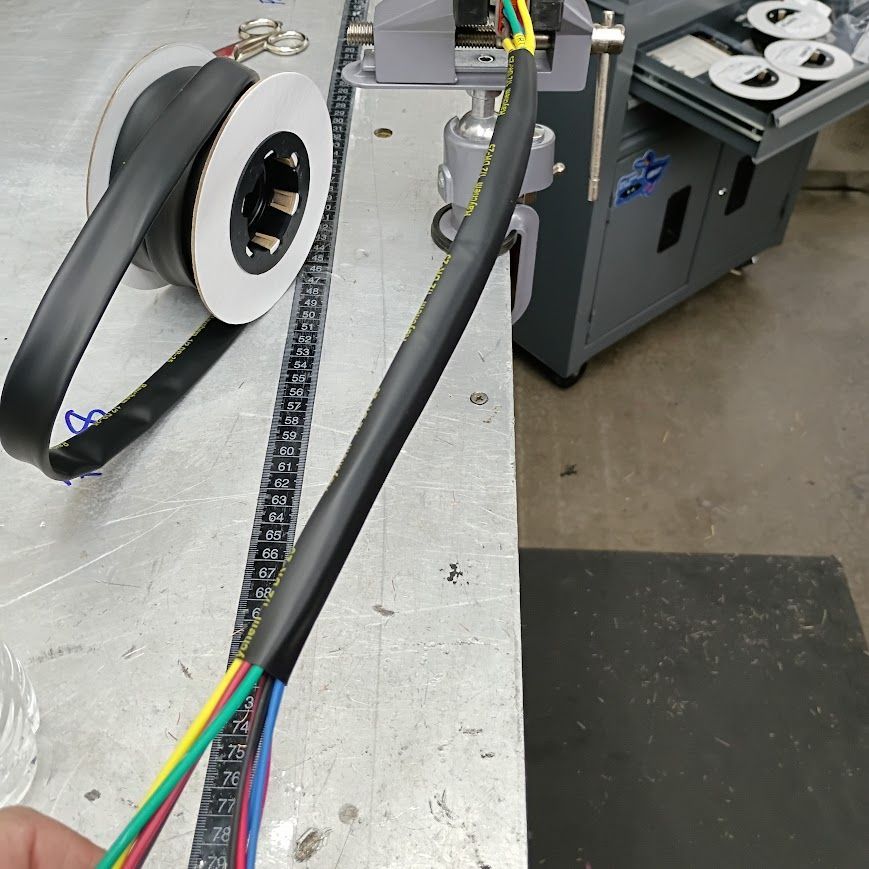

Close-up of bundled black cables with colored wires near a white spool and gray equipment on a workshop floor

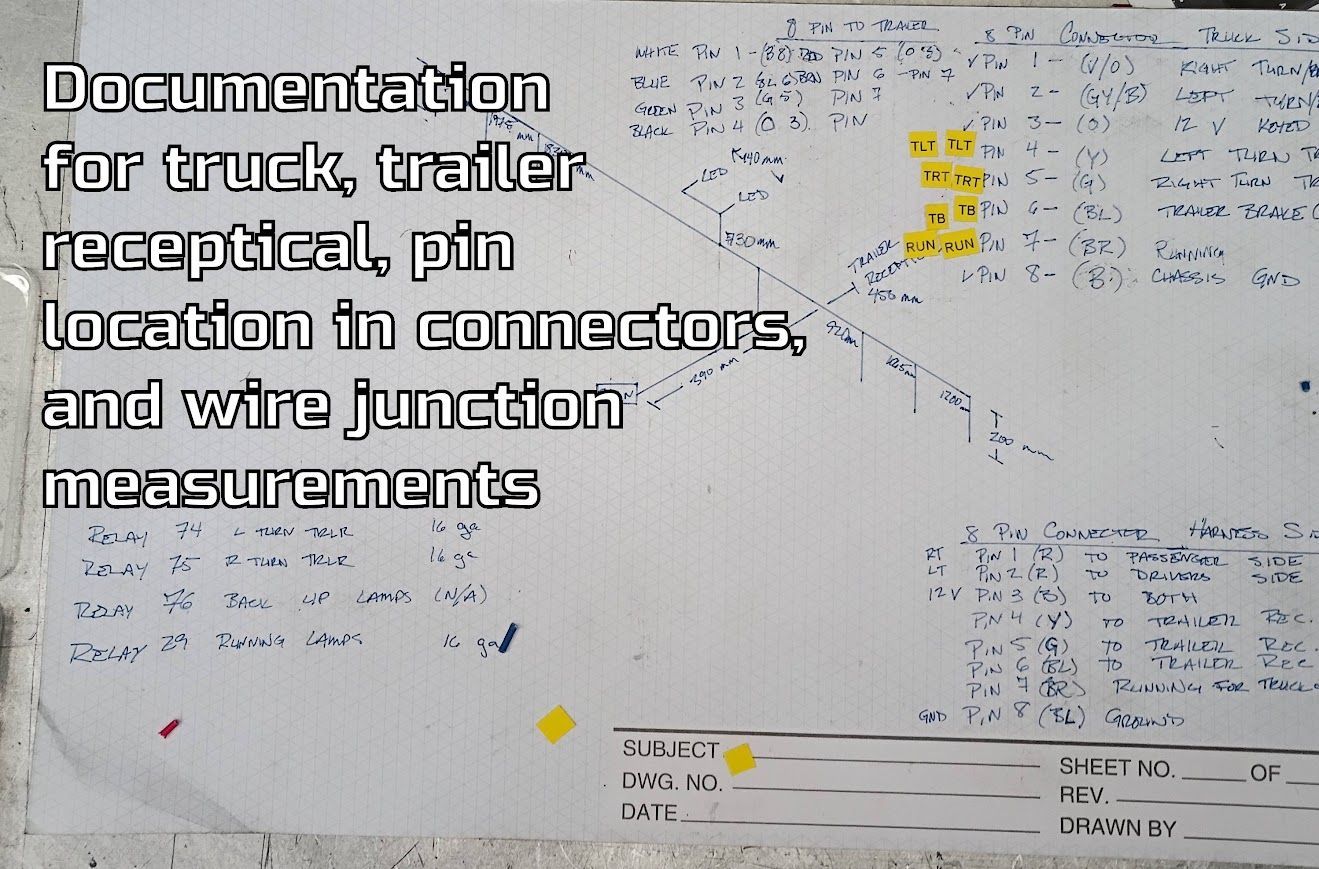

Whiteboard notes on truck trailer receptacle pin locations and wire function measurements, with arrows and diagrams.

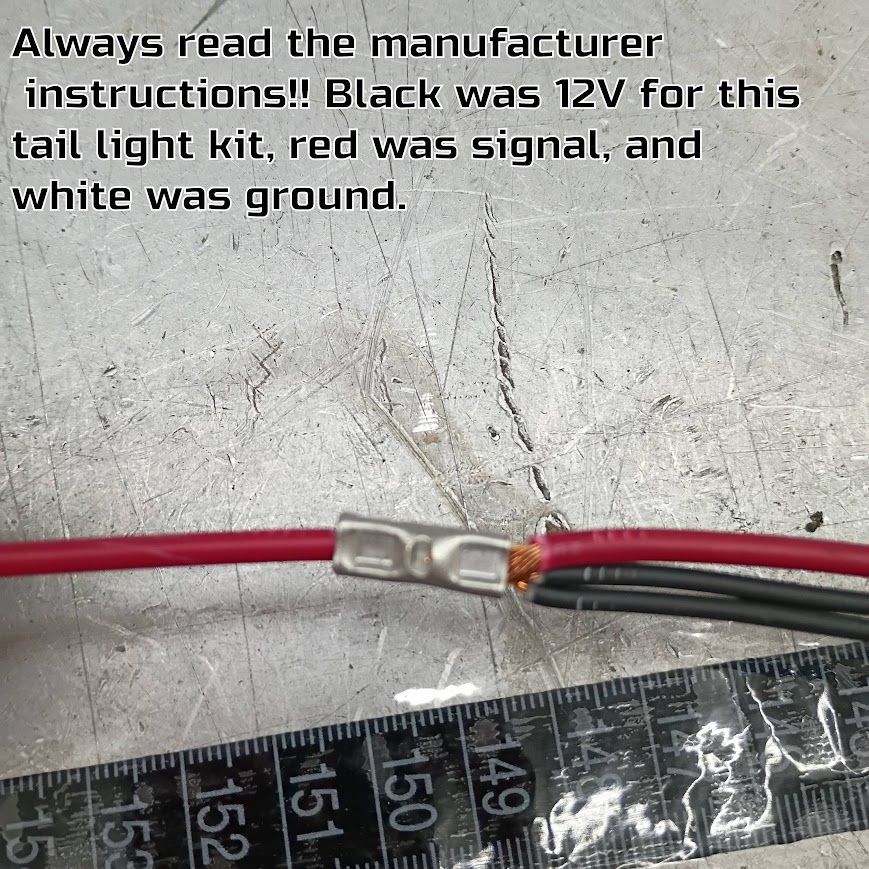

Wires spliced with a crimp connector on a gray surface, with text noting red is signal and white is ground.

Close-up of red and black wires joined by a black heat-shrink sleeve on a workbench, with text label visible.

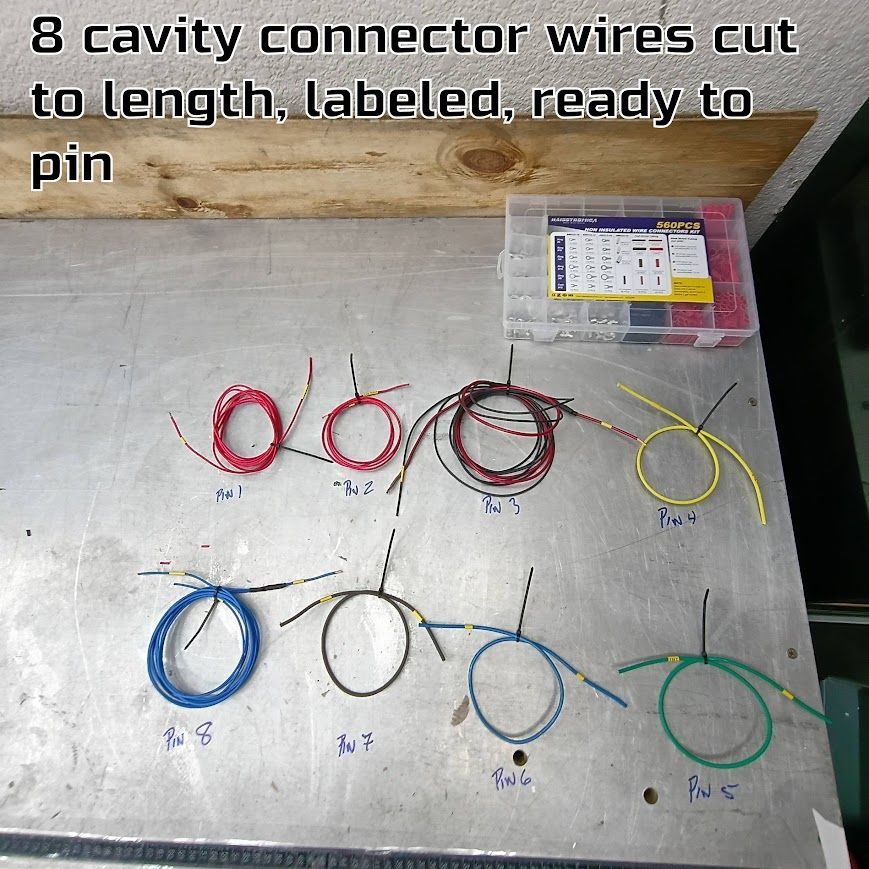

Labeled connector wires cut to length, neatly coiled on a work surface beside a parts box.

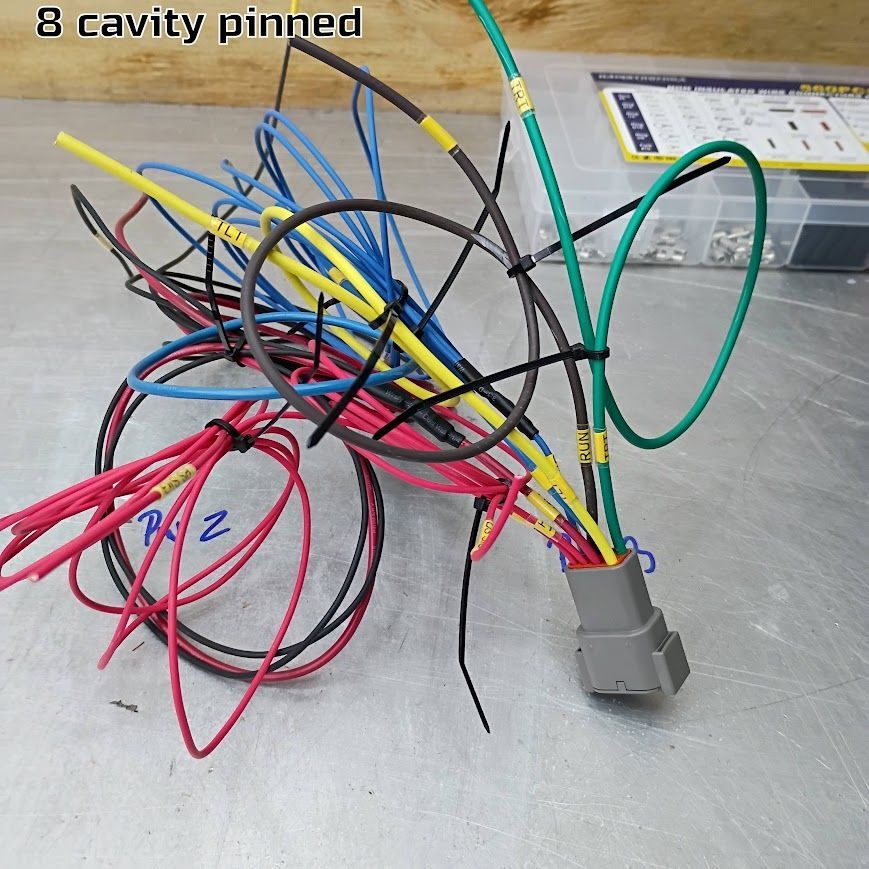

Cluster of multicolored jumper wires with gray connector on a metal table, labeled “8 cavity pinned”

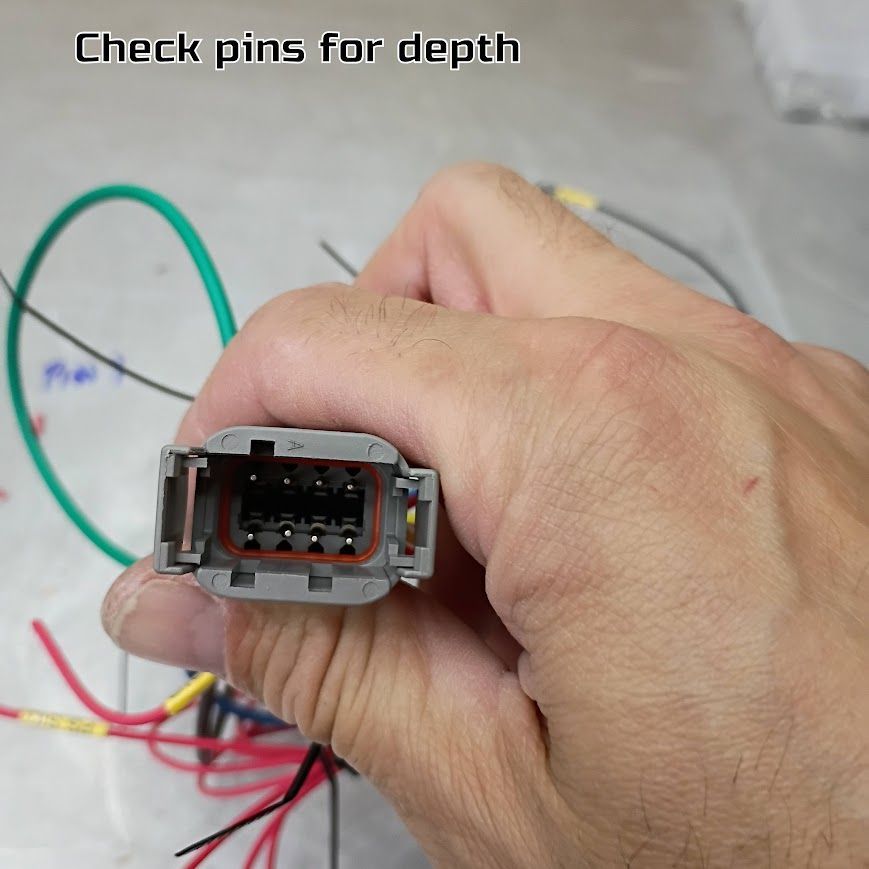

Close-up of a hand holding a gray electrical connector with colored wires on a workbench.

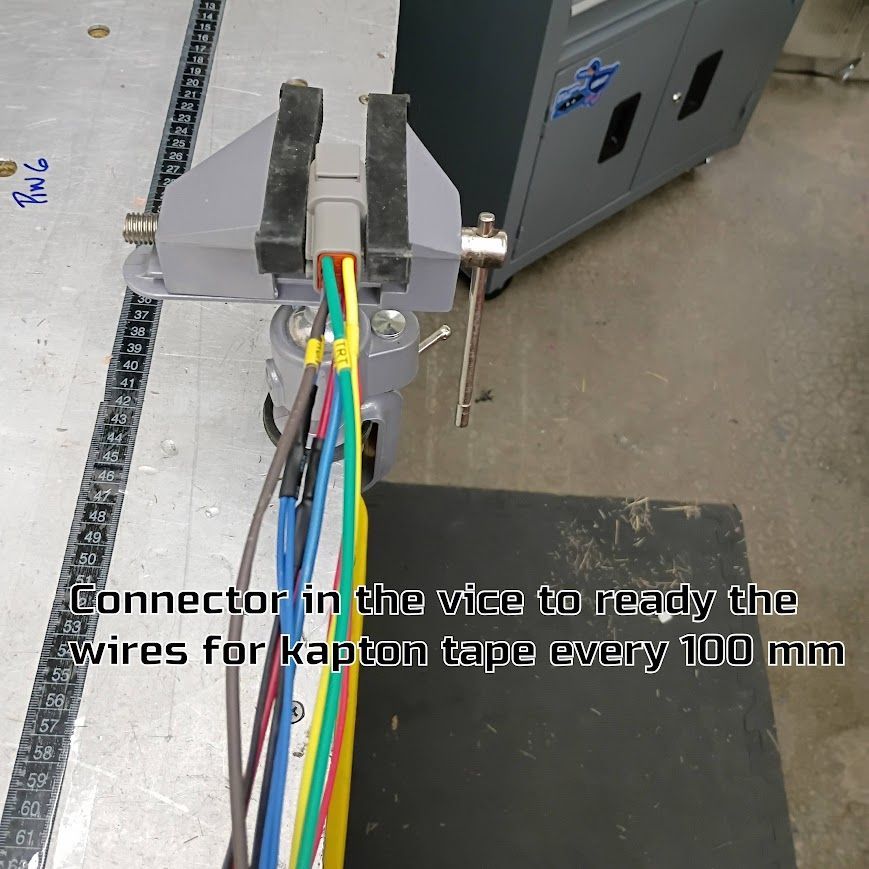

Clamped multicolored wires in a workshop, with text about arranging connectors every 100 mm

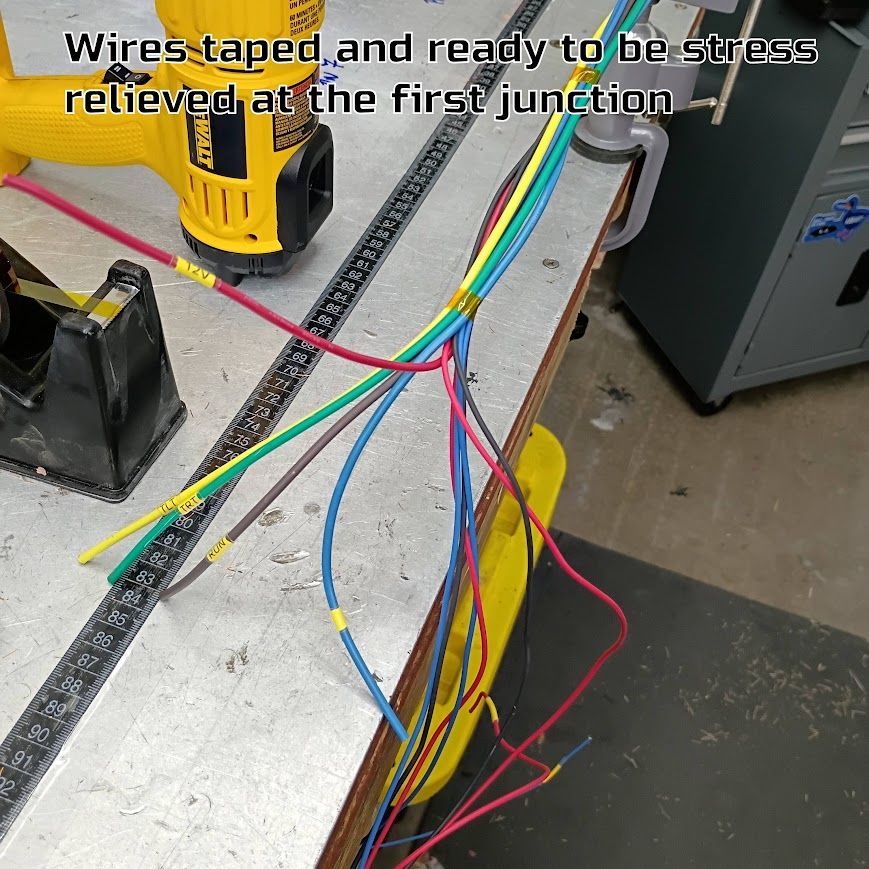

Color-coded wires taped and routed over a workbench near a yellow drill, ready for stress relief.

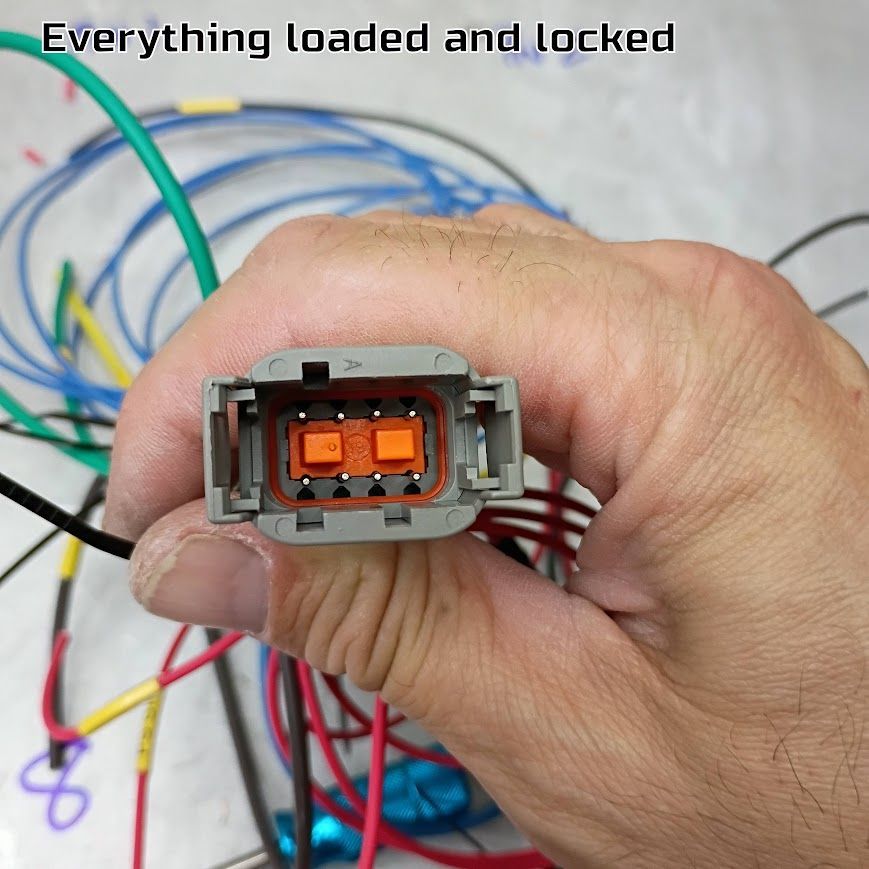

Hand holding a gray electrical connector with orange pins and colorful wires in the background

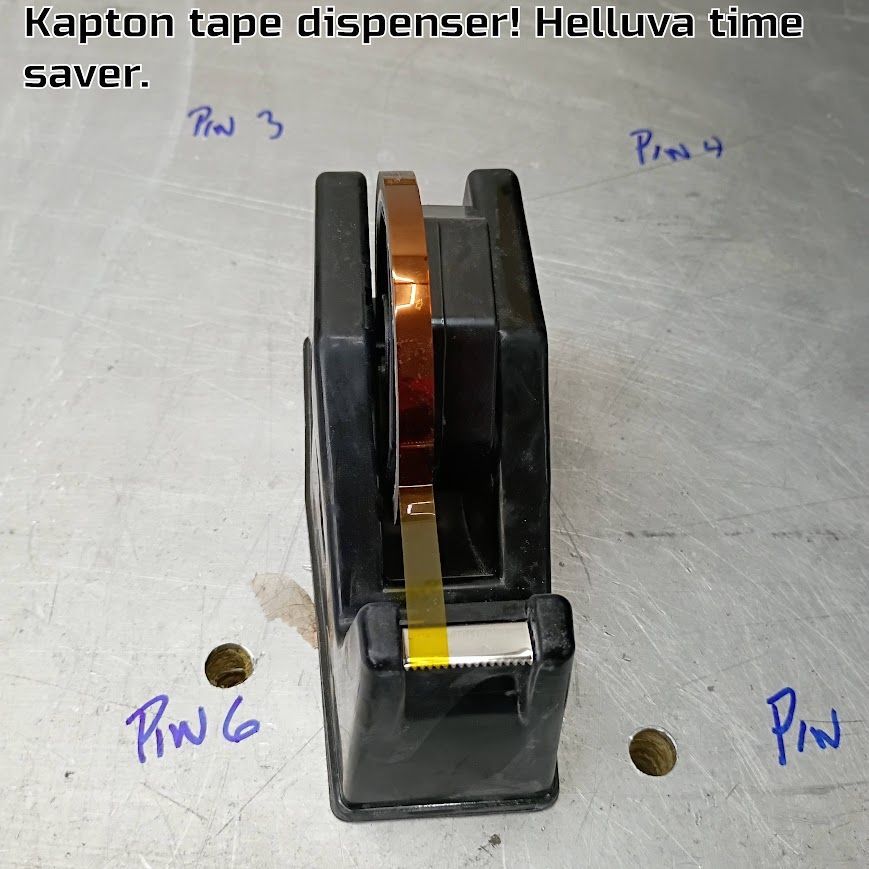

Black Kapton tape dispenser with amber tape on a gray workbench.

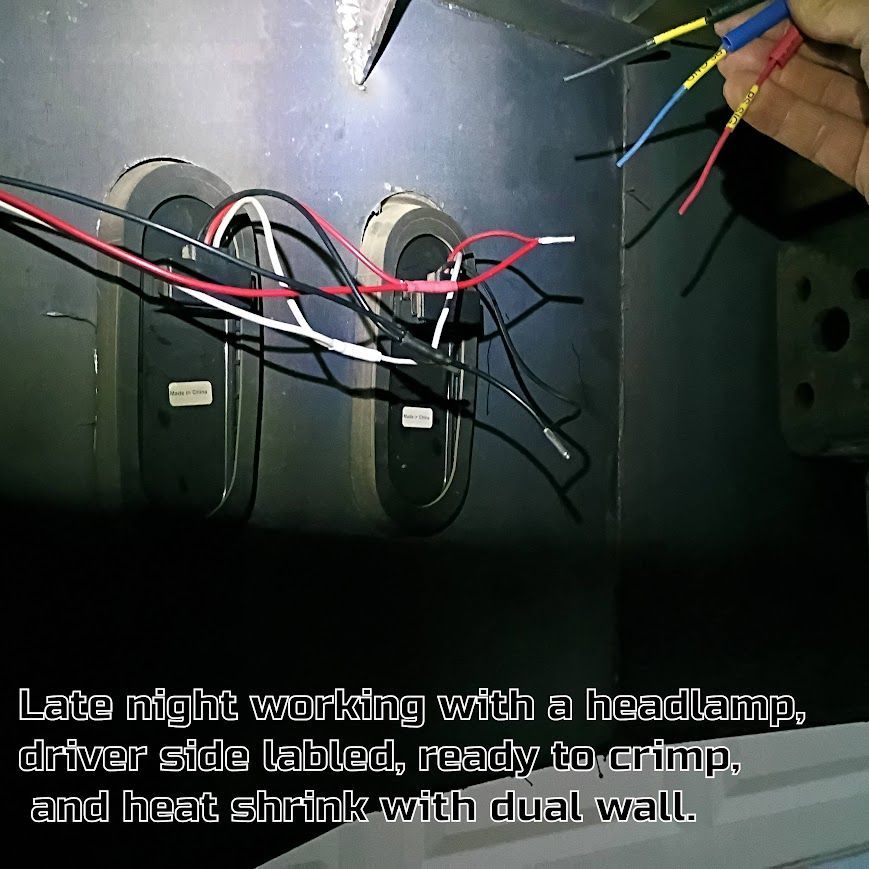

Two black devices on a wall with tangled red, black, and white wires; text overlay about late-night electrical work.

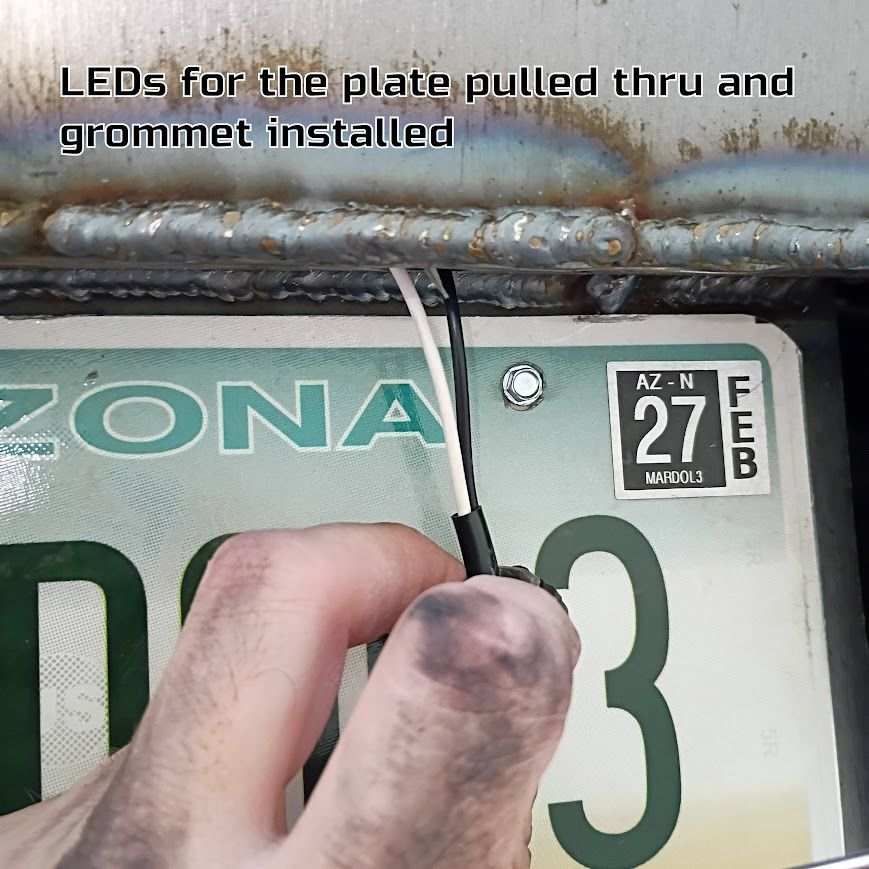

Hand installing white LED wiring through a vehicle license plate grommet on a rusty tailgate

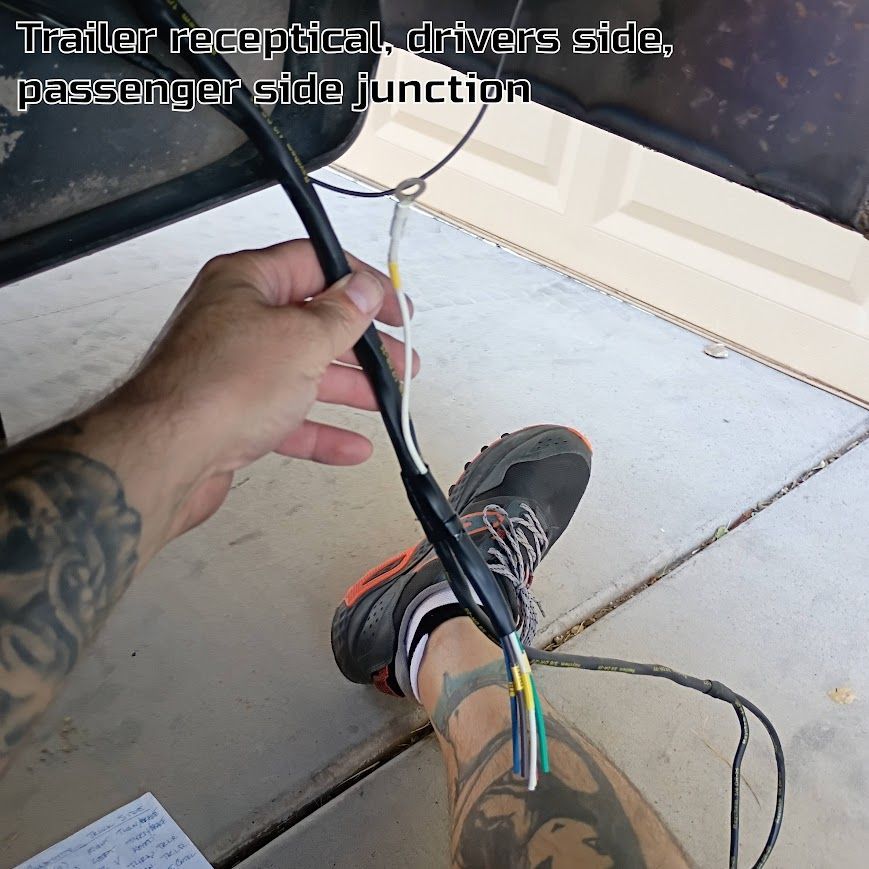

Hand holding a trailer receptacle wiring harness with exposed colored wires over a garage floor.

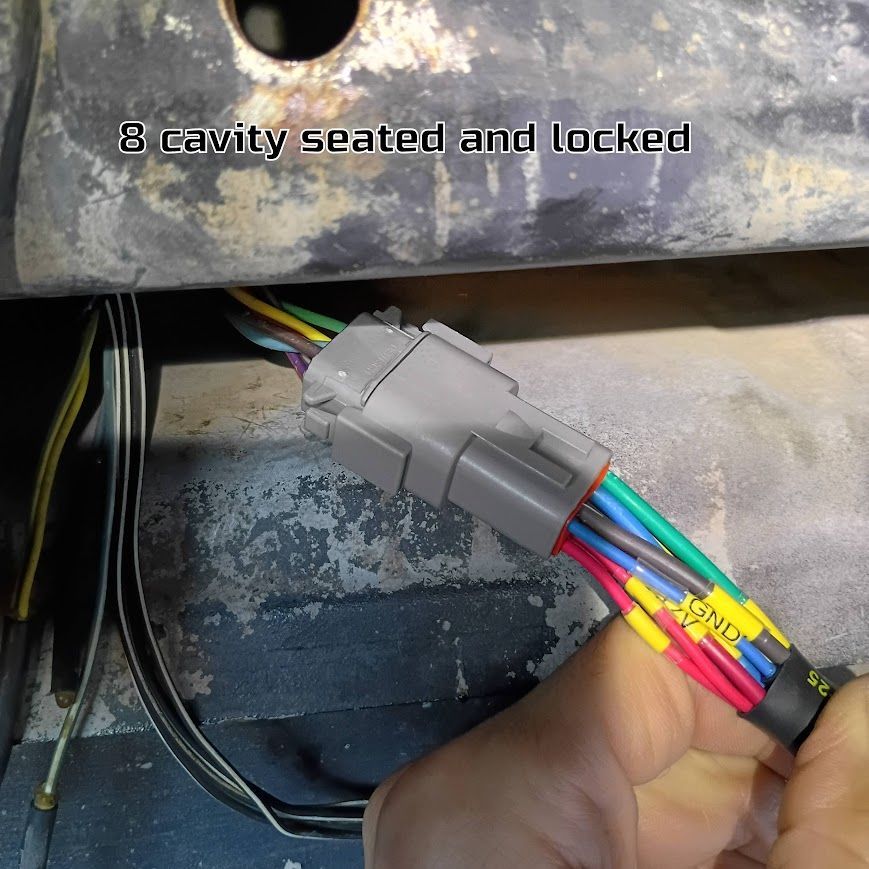

Hand holding a gray 8-cavity connector with multicolored wires in a vehicle wiring area

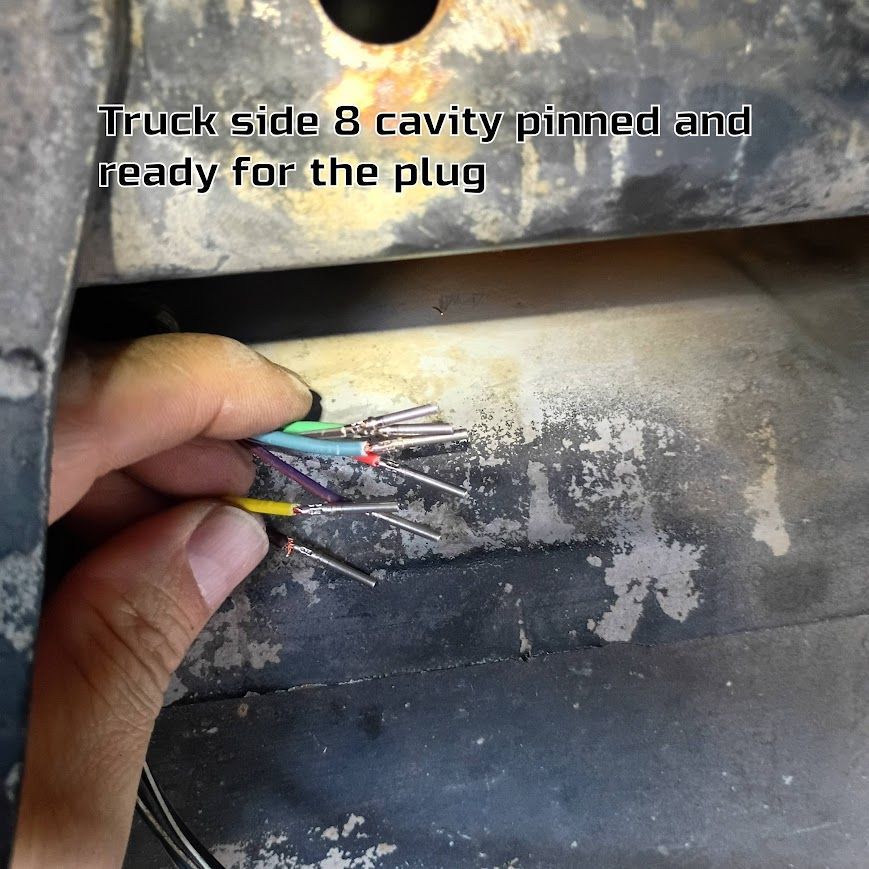

Hand holding multicolored wires inside a truck side 8-cavity connector opening

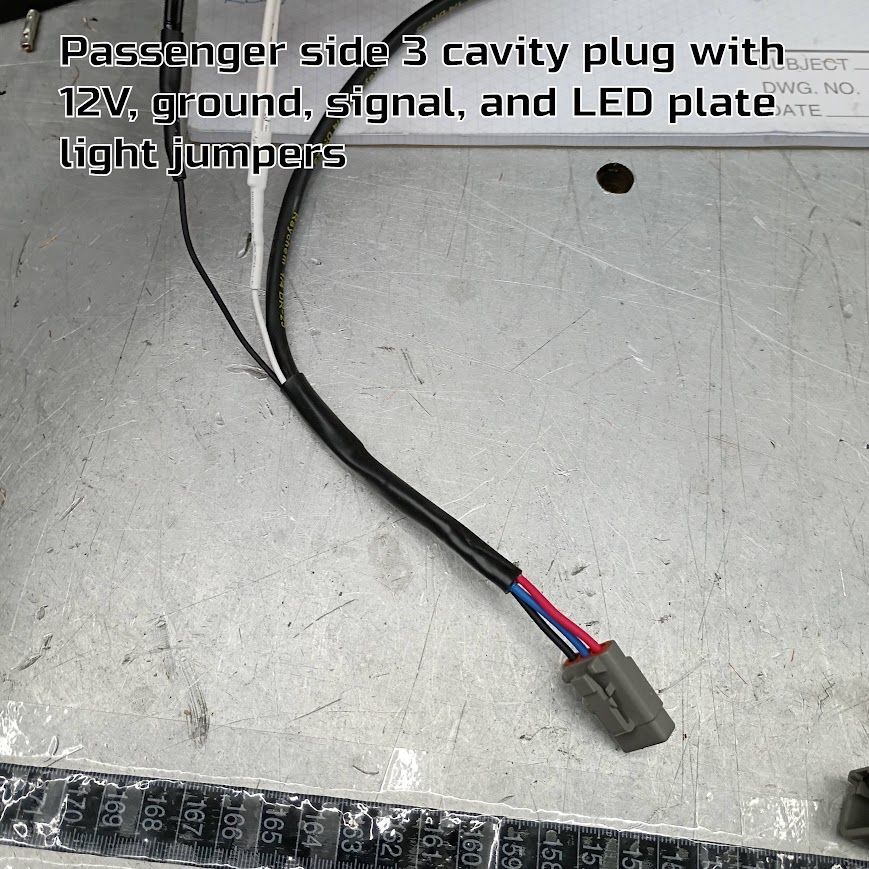

Passenger-side 3-cavity plug with 12V ground, signal, and LED plate light jumpers

Hand holding wired connectors over a workbench with tools and notes.

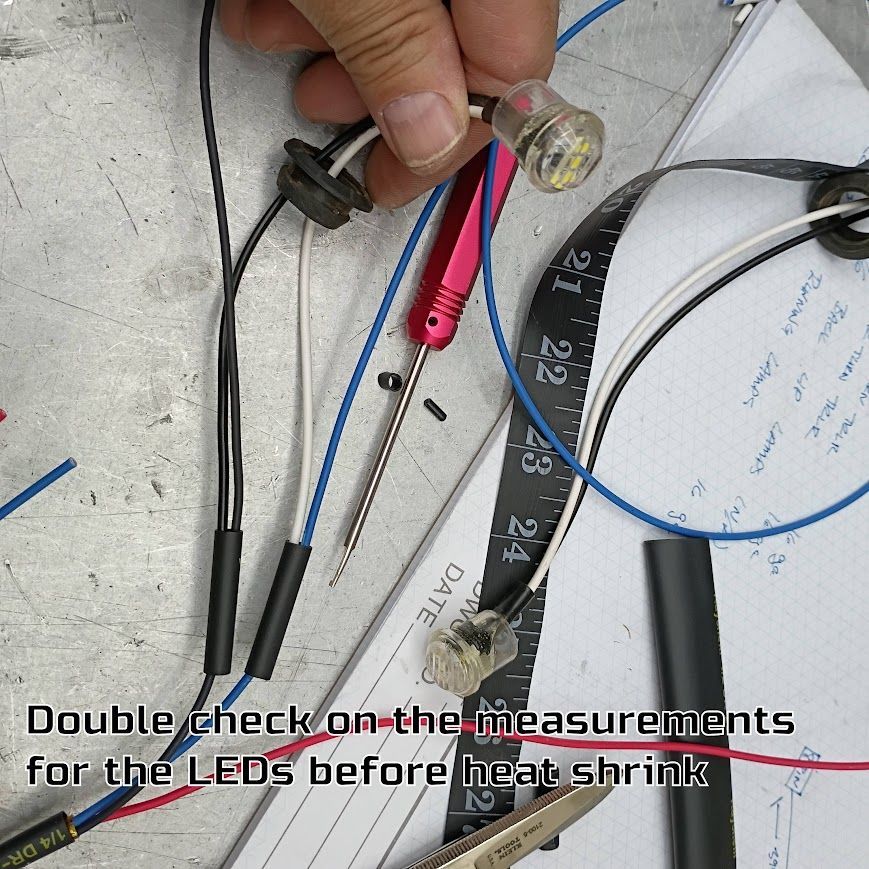

Hand holding a small LED and wiring on a workbench, with a note about checking measurements before heat shrink

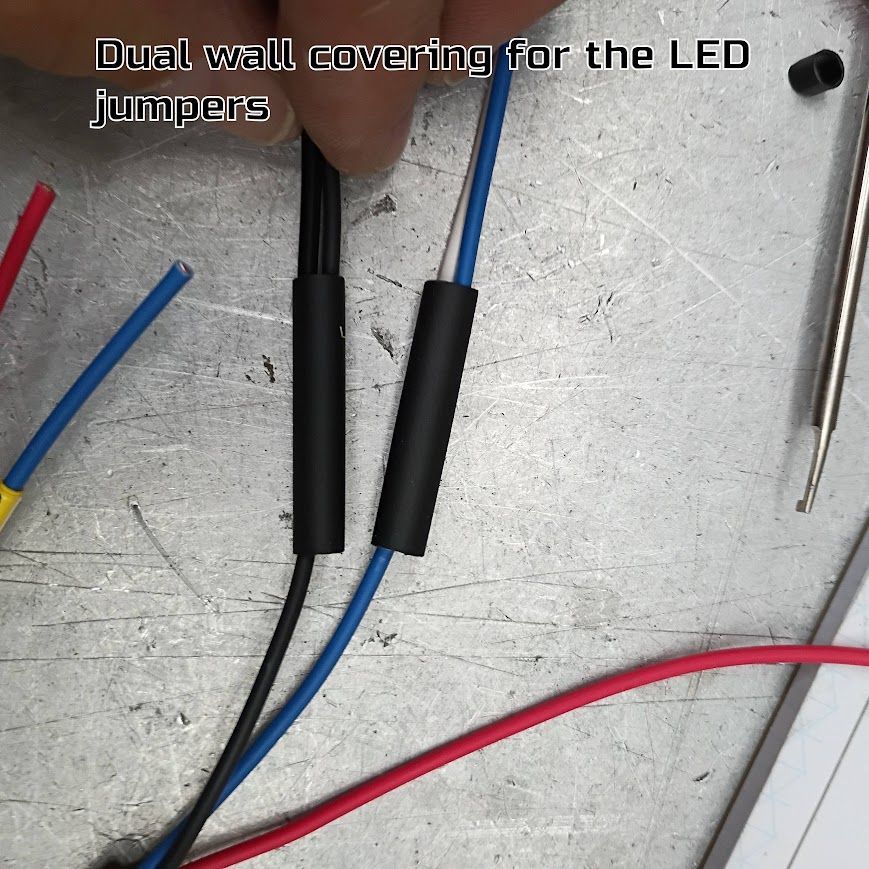

Dual-wall heat-shrink covering black and blue LED jumper wires on a workbench.

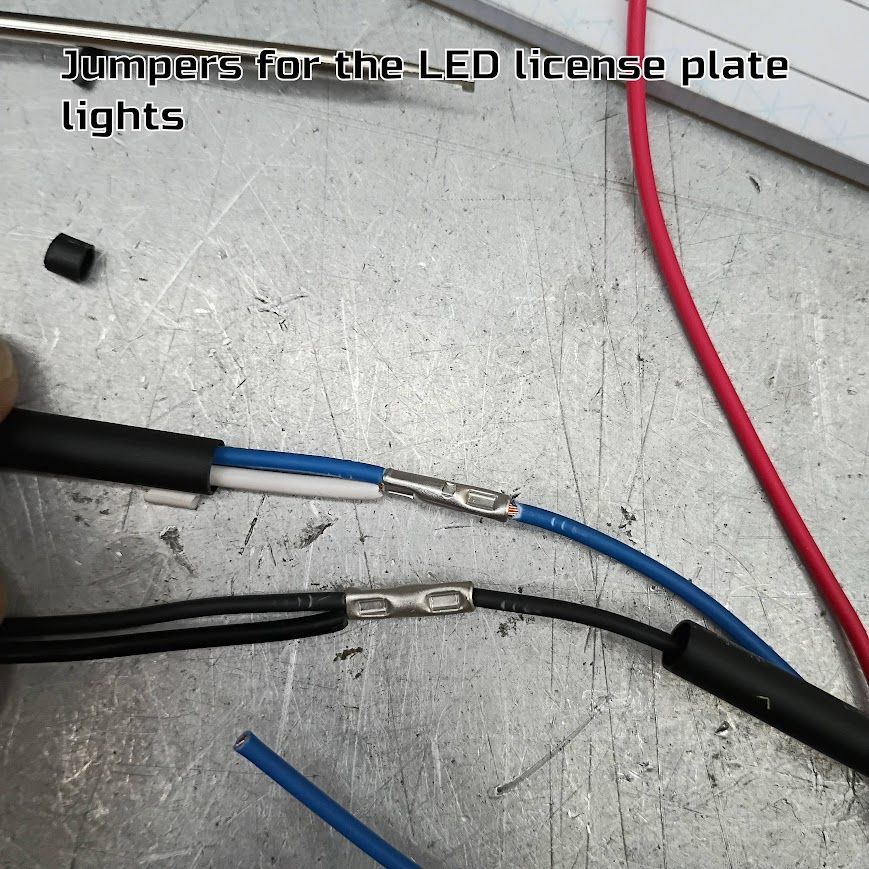

Blue and black wires with crimp connectors on a gray surface, labeled for LED license plate lights

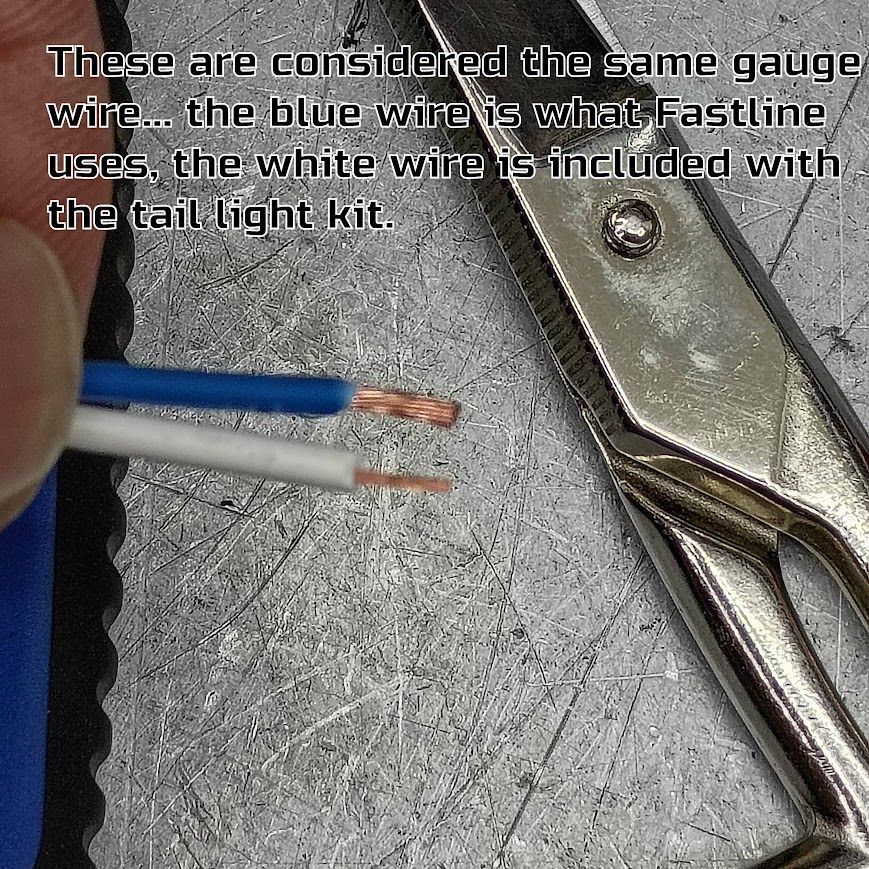

Blue and white wire ends held by pliers on a metal surface, with text overlay about wire gauges

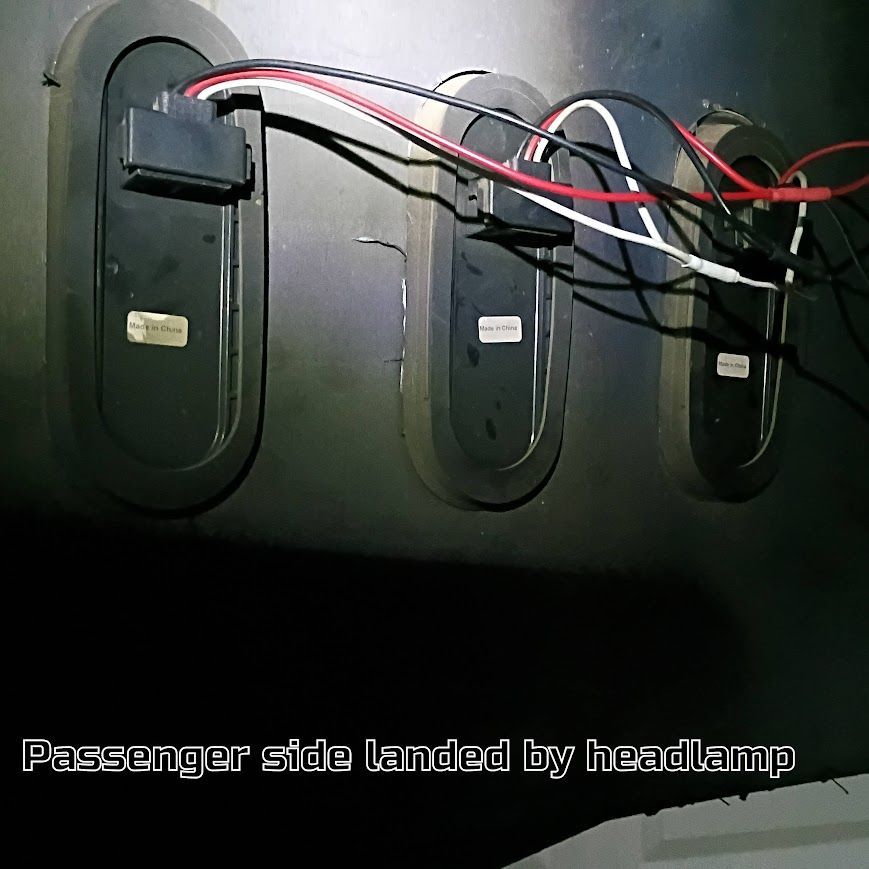

Cables and connectors routed through three oval access panels on a black passenger-side car interior panel.

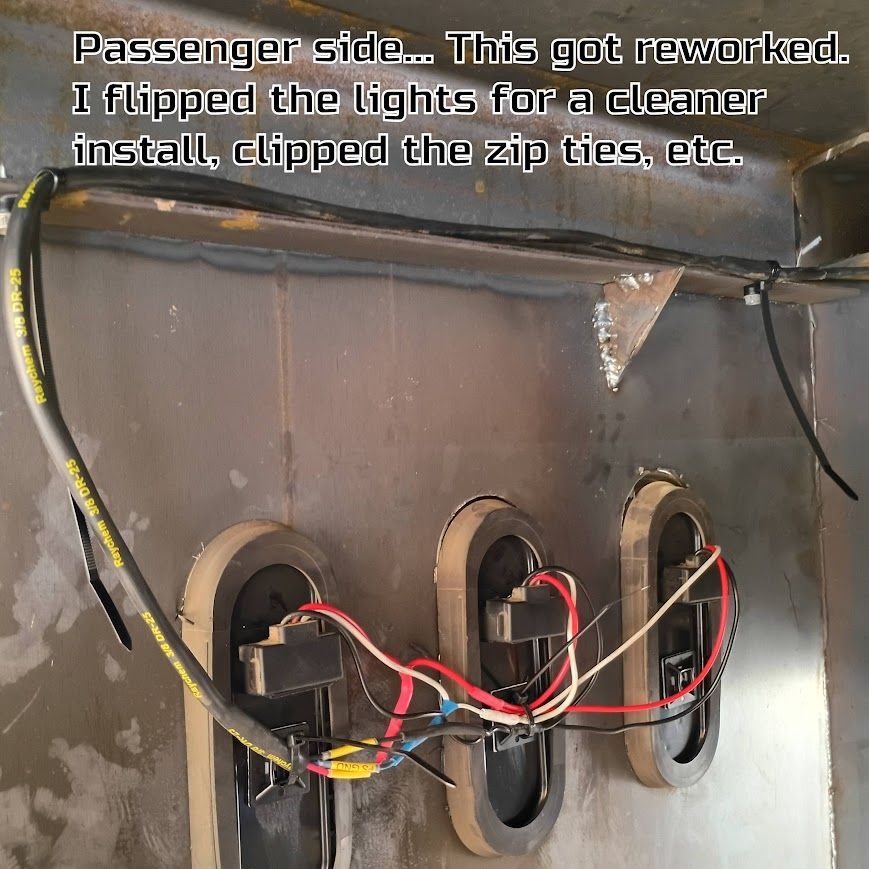

Wired car panel with three oval openings and red-black cables, labeled “Passenger side” with notes on a recent rework.

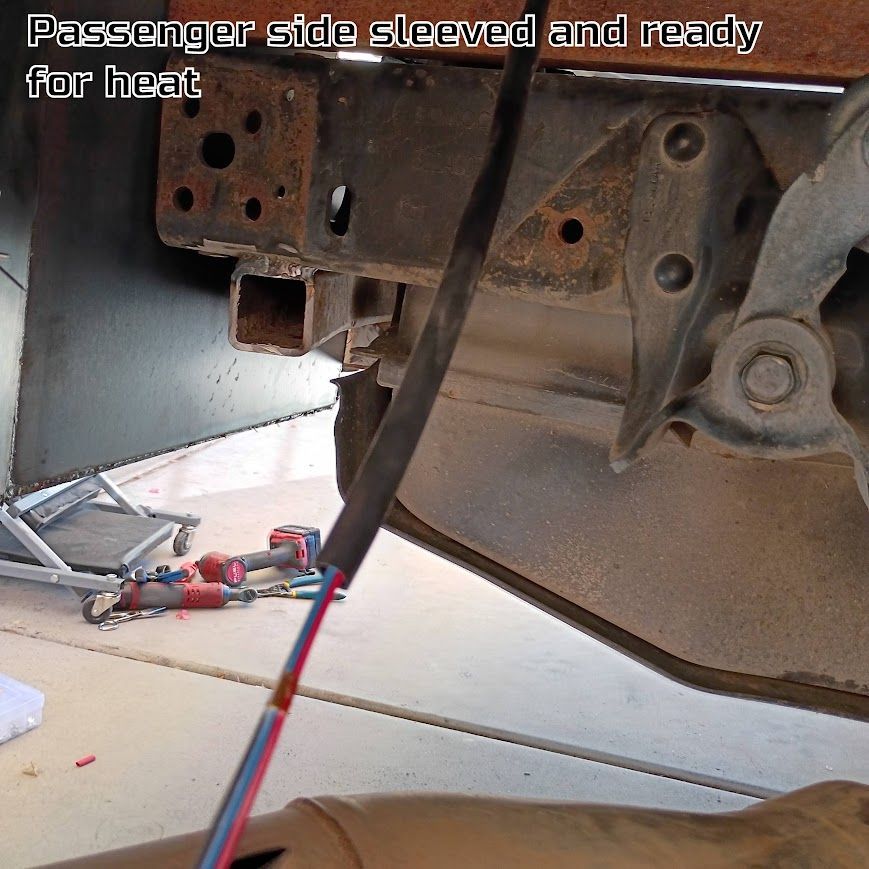

Undercarriage of a car with passenger side sleeved and ready for heat, tools on the floor below.

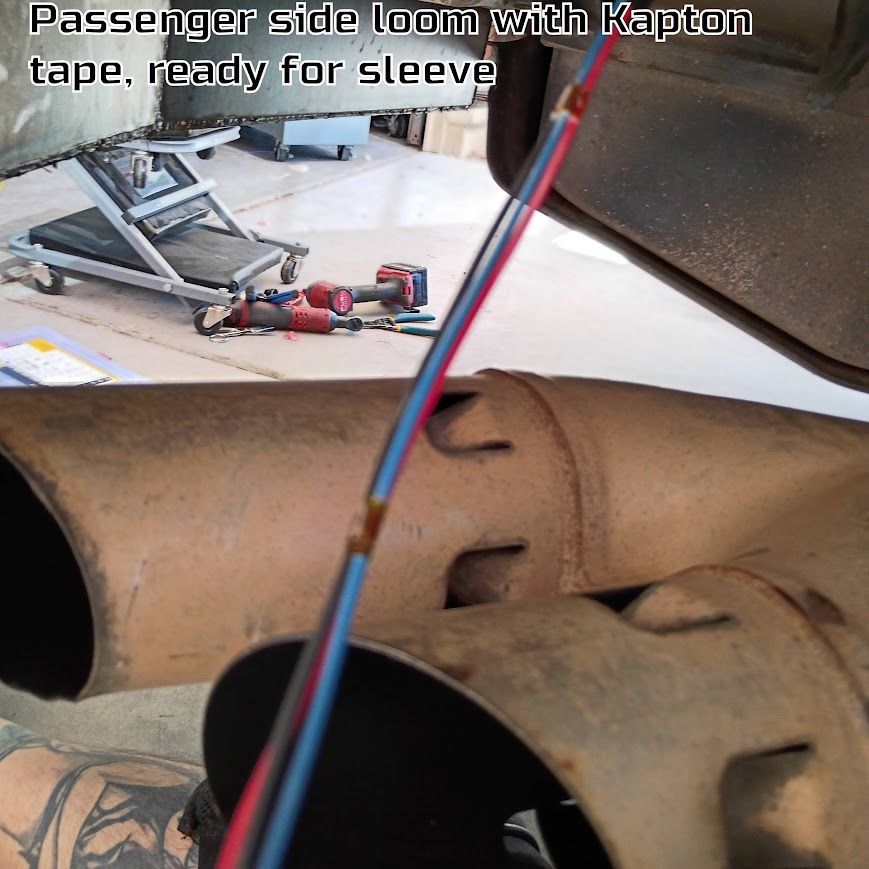

Passenger-side loom with red and blue wires wrapped in Kapton tape, ready for sleeve

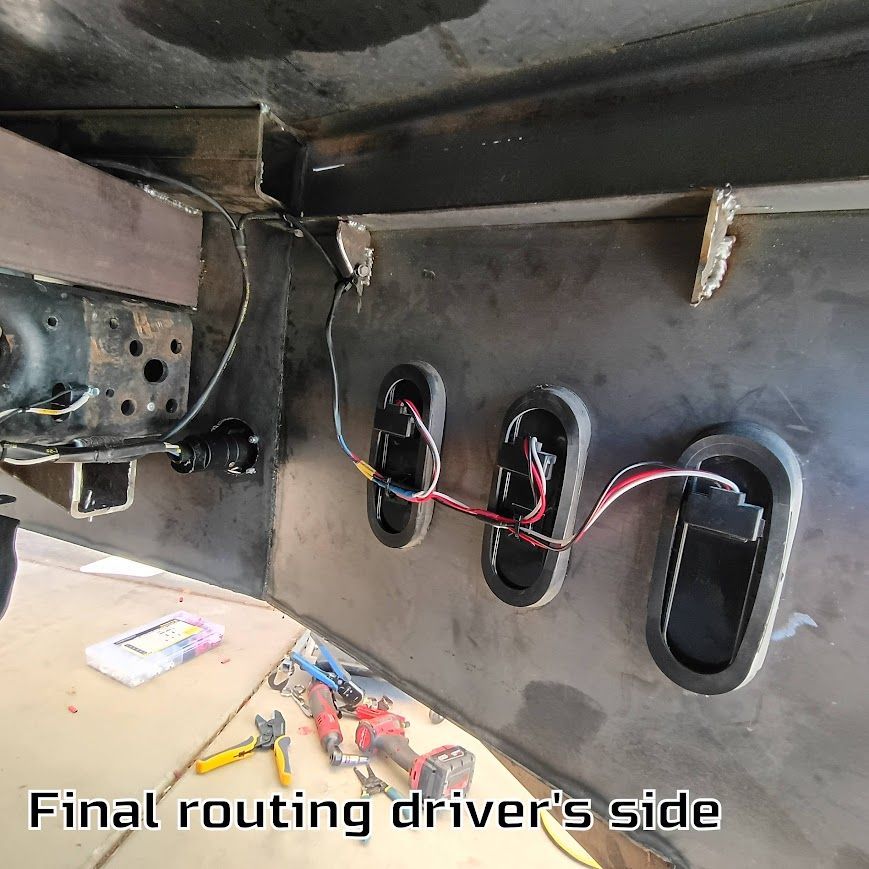

Car wiring harness routed through driver-side firewall openings, with tools on a work surface.

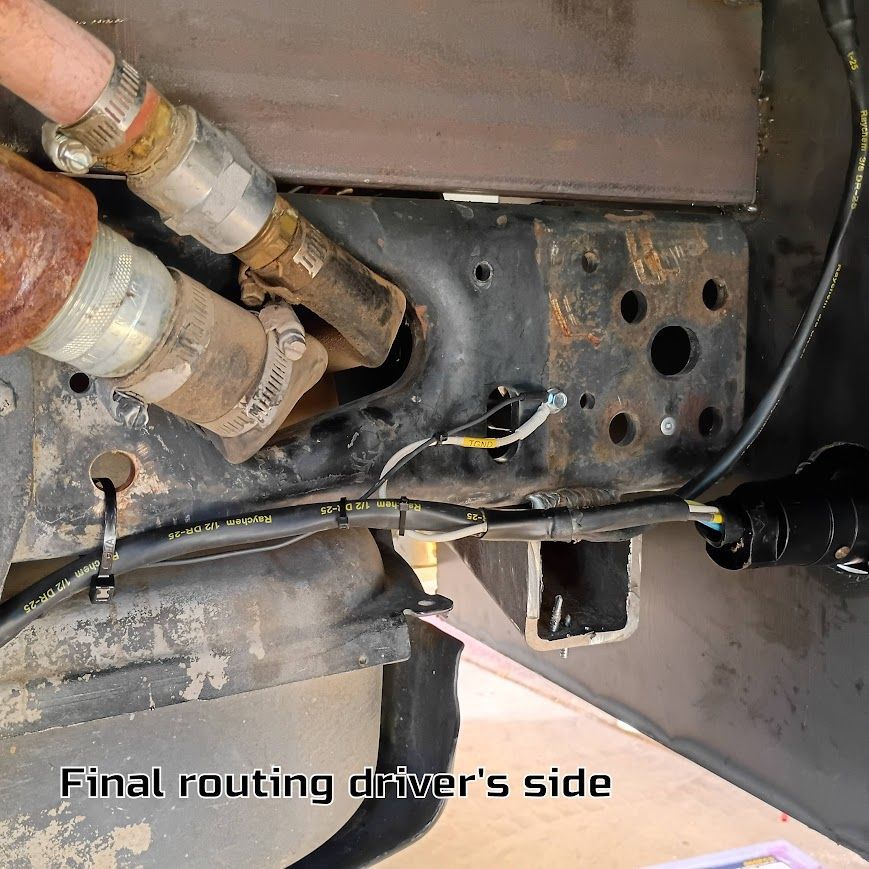

Underbody wiring routed along driver’s side near hoses and metal frame with “Final routing driver’s side” text

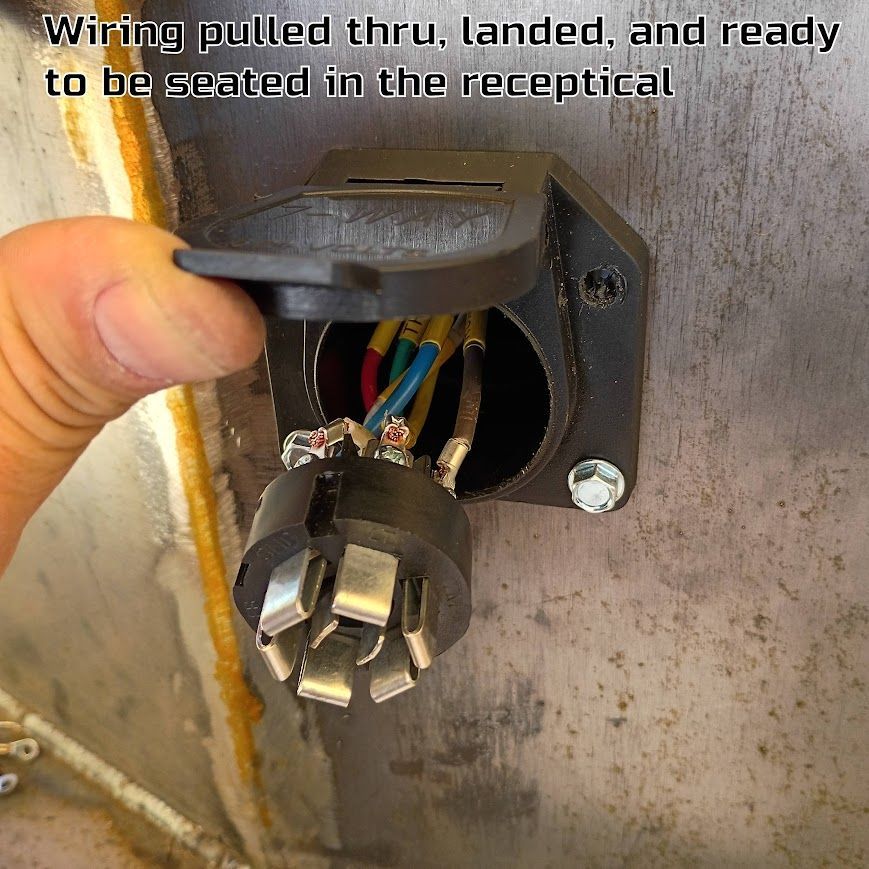

Electric wiring pulled through a wall receptacle box, ready for seating, with a hand holding the cover open.

Black cable with colored wires and ring terminals wrapped in a black sleeve on a tiled floor.

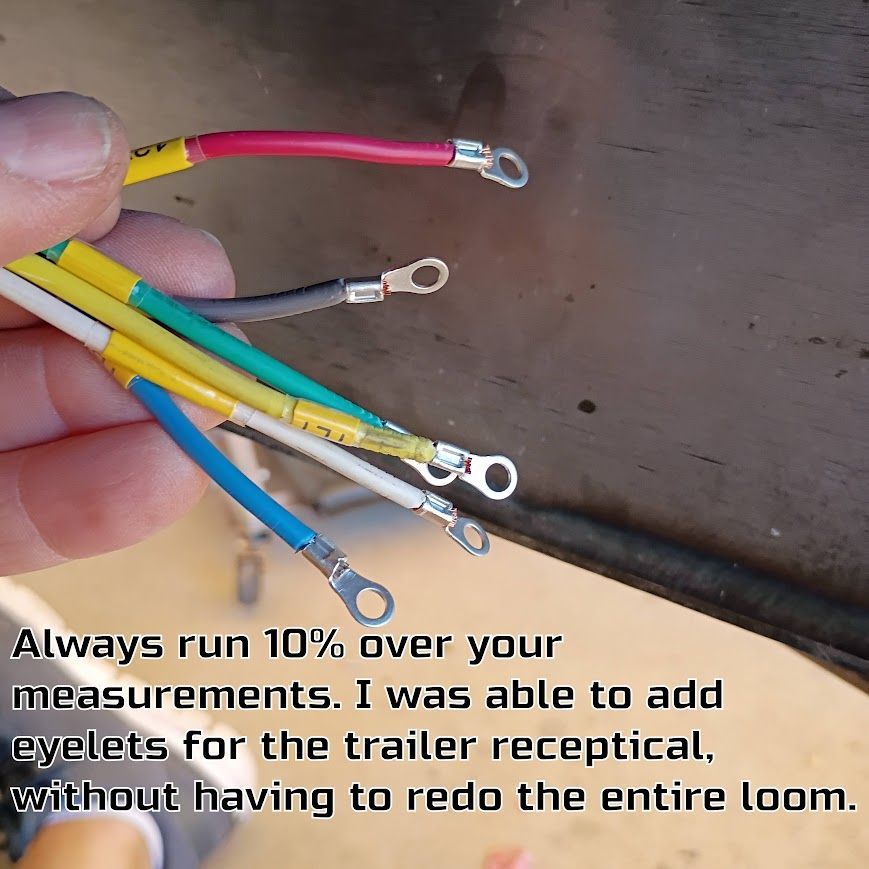

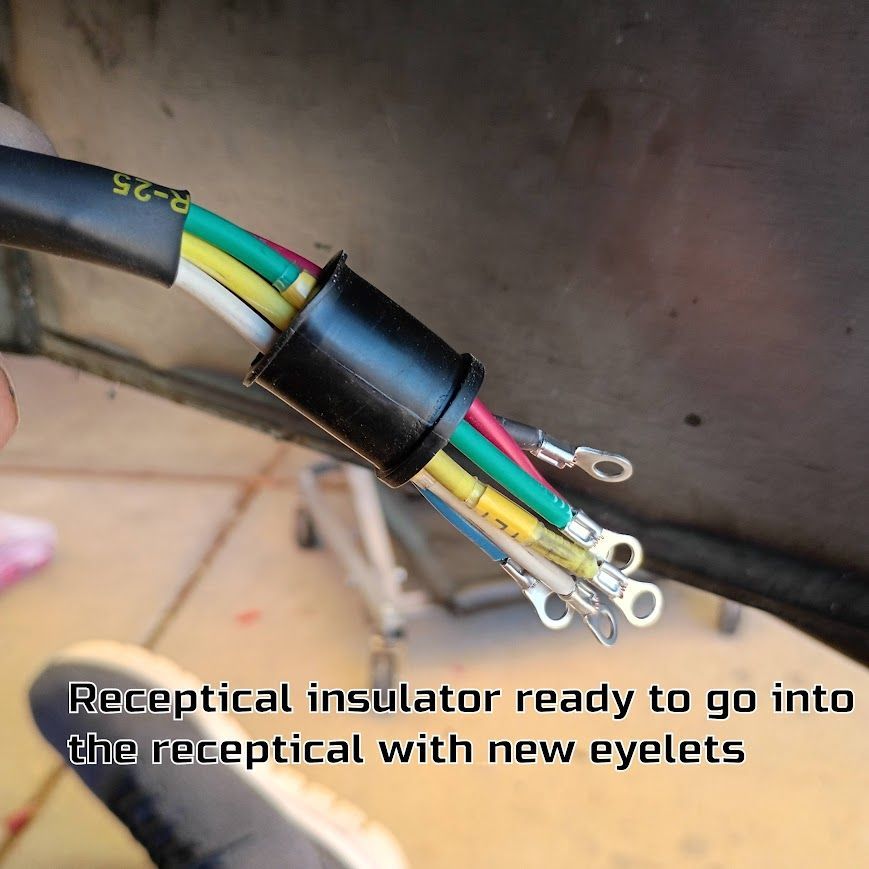

Hand holding multicolored wires with ring terminals; caption mentions adding eyelets for trailer receptacle.

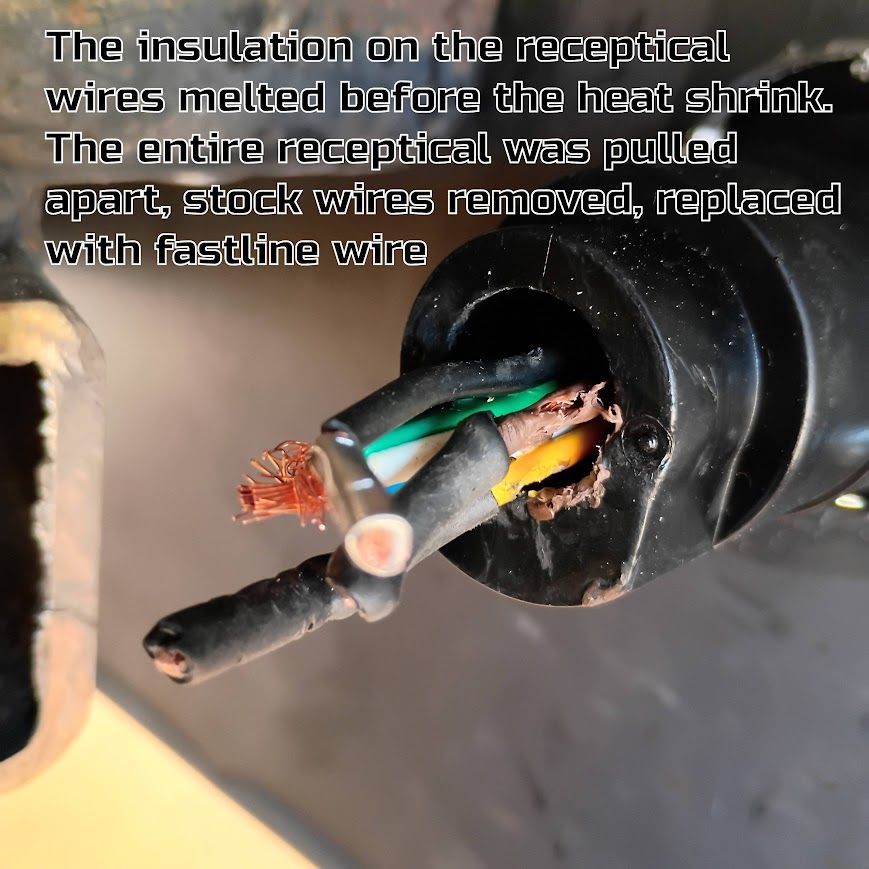

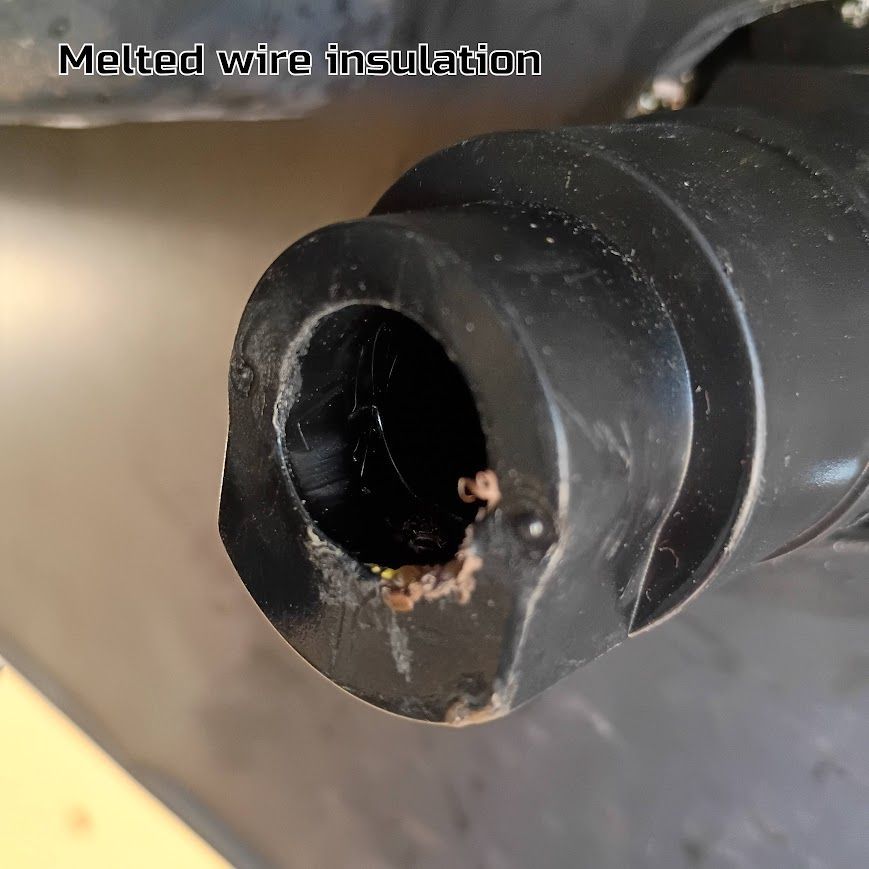

Melted wire insulation on a black cable end, with burn damage visible inside the opening.

Damaged electrical receptacle with exposed multicolored wires and a black mount, overlaid with repair text

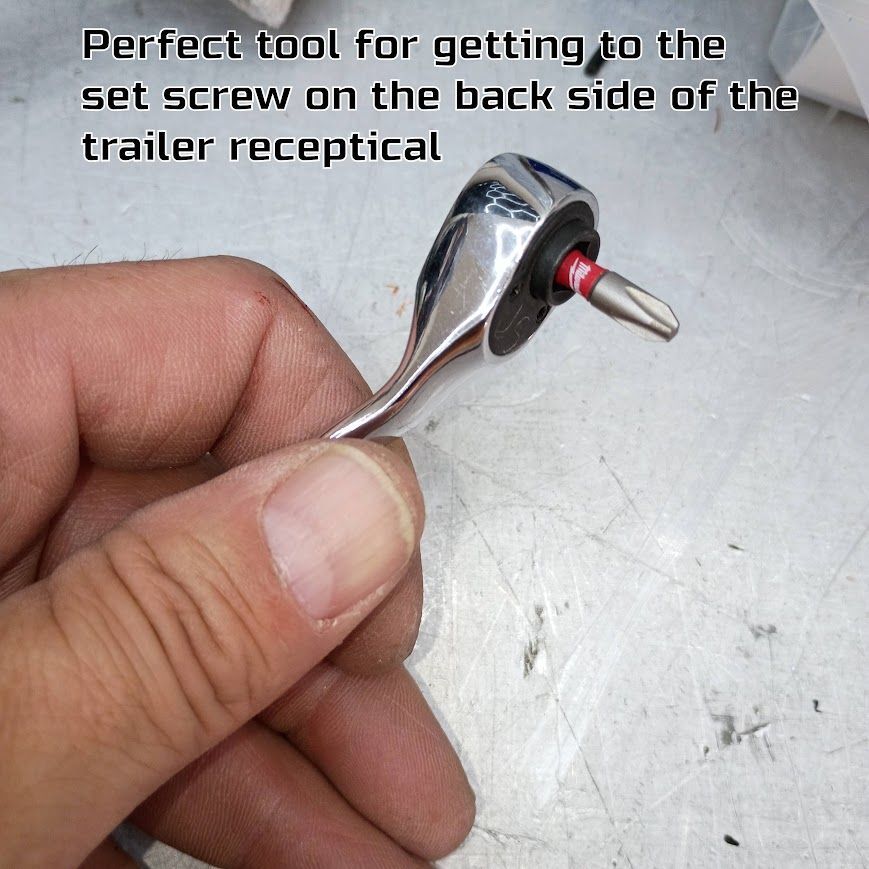

Hand holding a small chrome ratchet tool with a red socket adapter on a workbench.

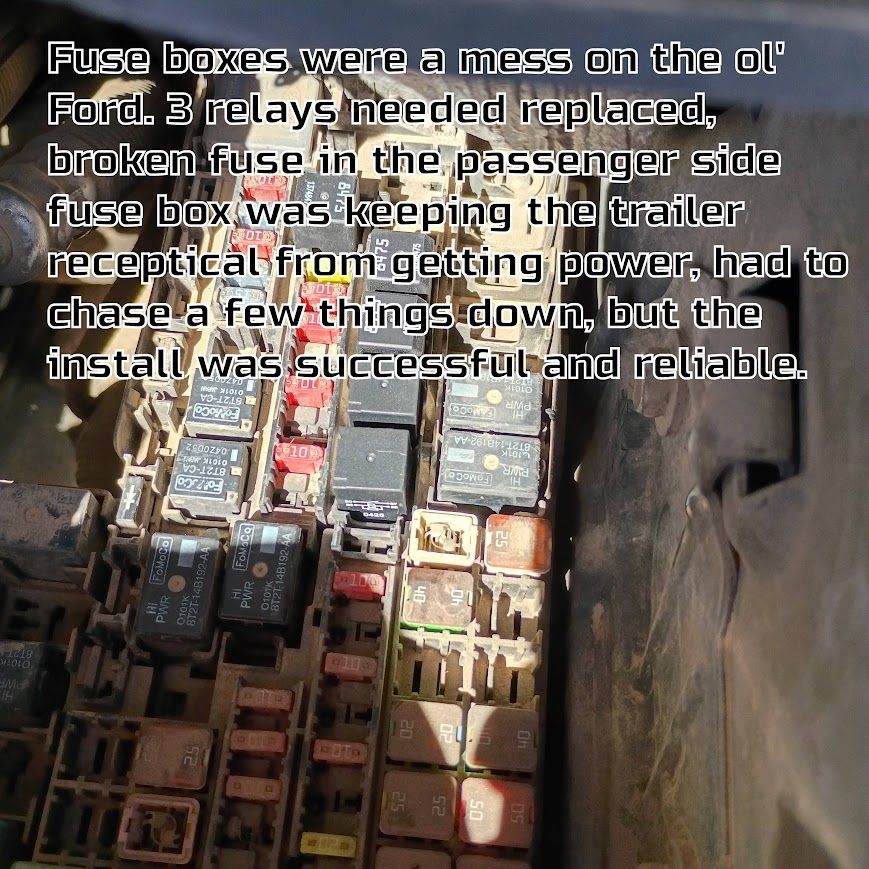

Open fuse boxes in a car footwell with exposed wiring and removed relays.
